Gun Drill System CNC Deep Hole Drilling Machine (ZJA06-0606)

Product Description

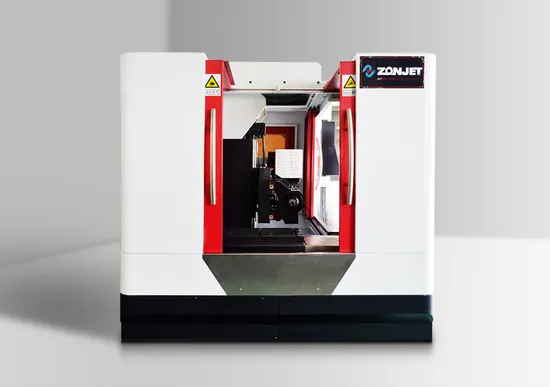

ZJA SERIES ZJA06-0606
Product application
Deep hole drilling machines are mainly used in the industries as following:
-Mould industry: water line hole, thimble hole, ejection pin hole, electric hole, and inclined hole, etc.
-Hydraulic machinery industry: valve, distributor and pump,etc..
-Automotive industry: cylinder, fuel supply system and other parts
-Aerospace industry: the propeller, landing gear and other parts.
-Chemical and generator industry: heat exchange parts.
The base of machine tool is made of resin sand cast, which is twice qualitative treated. There are three main parts: base, column and entering sliding table. Imported ball screw and guide rail are installed in every part, and it runs by the high-precision Servo Motor.
The base includes operating platform, Servo Motor, lubricating system, protecting cover, etc. The operating platform moves along the direction of X axis horizontally.
The column includes Servo Motor, counterweighing, etc. The entering sliding table moves up and down along the direction of Y axis.
The sliding table includes main axis and its motor gears, Servo Motor, anti-hunting support for gun drill and its automatic regulating device, gun drill guide and chip conveyor, stabilizer of hydraulic system, etc. The gun drill moves along the direction of Z axis horizontally.
The main axis part consists an axis kit. The main axis is driven by the gear belt wheels and make rotational motion. There is an imported high-speed and high-pressure rotary connector behind the main axis, in order to ensure no leakage of cutting oil when the main axis runs in high speed. There is also hydraulic overload protecting function, and the components can be well protected in case of any improper operation.
It is a special deep-hole drilling operating system, which is powerful, simple operating, stable and durable. Main advantages:

Multi - segments processing automatically: It will adjust the feed rate automatically according to the processing schedule.

Logical control processing: The processing situation is monitored and the processing specification will be adjusted automatically if any unusual.

The highly sensitive monitoring equipment will sound a alarm if any unusual errors and stop processing, which is safe and found intuitively.

Multiple operation. There are optional modes: man-machine dialogue mode, machine programming mode and remote transmission mode.

Items		Contents
Processing capacity	Drilling aperture range	φ3~φ32mm
	Max. drilling depth	600mm
Processing range	X axis processing range	600mm
	Y axis processing range	600mm
Working table	Dimension of working table	500×800mm
	Max. Loading capacity	3Ton
Processing speed	Max. Speed of spindle	4500r/min
	Feed speed	0~3000mm/min
Power parameter	Spindle servo motor	5.5KW
	X axis servo motor	6N.m
	Y axis servo motor	10N.m
	Z axis servo motor	6N.m
	Total power	23KW
Cooling system	Max. Pressure of cooling system	100kg/cm2
	Max. Flux of coolant liquid	80L/min
	Capacity of cutting oil tank	600L
Precision parameter	Aperture precision	IT8~IT11
	Harshness of Hole Surface	Ra ≤3.2μm
	Tolerance	0.5/500(S45#,10mm)
Others	Weight	5Ton
	Floor area of machine(Length*Width)	4200×2600mm
	Height	2300 mm
