Wxc80 Haige China Steel Round Bar Peeling Lathe Machine for Aluminum Titanium

Product Description

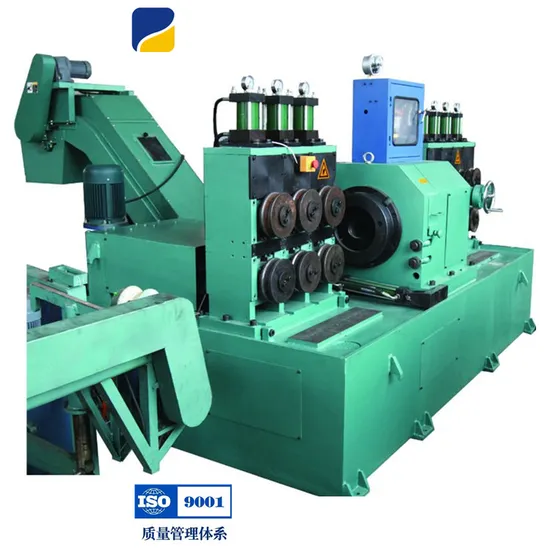

Steel Bar Peeling Lathe Machine

Company Information
Product Description Series WXC Peeling Lathe Machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc.
Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
During processing, the bar doesn't rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.
Main Technical Parameters (just for reference)

Specification		WXC80C (semi-automatic type)
Black bar required	Diameter Range (mm)	Φ20~Φ80
	Length Range(mm)	2500~6000
	Yield Strength σb (Mpa)	≤1100
	Surface Hardness	≤HB320
	Straightness	≤1.5‰
	Diameter Tolerance	according to GB 702-2004 second group
	Roundness(mm)	≤50% of diameter tolerance
	Surface Roughness (Ra)	≤25~50μm
After peeling	Diameter Range (mm)	Φ19~Φ77.5
	Diameter Cutting Depth (mm)	1.0~2.5 (minimum cutting depth depends on the ovality of the raw material)
	Diameter Tolerance	h10-h9
	Surface Roughness (Ra)	6.3-3.2μm
Feeding Speed (m/min) stepless speed		1.0~10.0(it should be slowed down if the bar is continuous chips, with high strength, high hardness, larger diameter or smaller diameter, larger or smaller cutting depth)
Cutter Head Rotational Speed(rpm)		430~1200 (stepless speed)
Main Motor (kw)		75
Voltage		380V
Frequency		50HZ
Total Capacity(kw)		95(approximately)
Dimension of main machine (L x W x H)		5.1m × 3.3m × 2.2m
Dimension (loader&unloader included) (L x W x H)		32.5m x 6.0m x 2.2m
Weight (T) - Main Machine		8.5 (for reference)
Compressed air (prepared by user)		0.5~0.8MPa,1.8m³/min, more than 0.8 m³ air storage tank with two stage oil water separator and Compressed Air Refrigeration Drier

Packing Details
More details, please contact me

---
