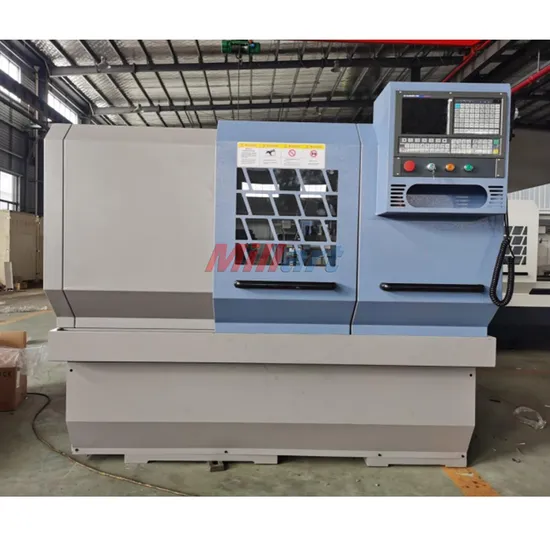

Metal CNC Turning Lathe Machine Ck6136 Small CNC Lathe for Sale

Product Description

Metal CNC Turning Lathe Machine CK6136 Small CNC Lathe For Sale
Product Description
1.Independent spindle , high precision ,lower noise , saving energy and protect environment
2. High speed and precision bearing, spindle smooth finish good. High precision ball screw
3.High stability one- piece machine bed, higher rigidity cast iron.
4.High frequency quenching rail, hardness and high wear resistance. Frequency conversion, stepless speed regulation. Integrated automatic lubrication
Product Parameters

Model	CK6132/750
Max. swing over bed	Φ360mm
Max. swing over cross slide	Φ160mm
Max. processing length	750mm
X axis travel	180mm
Z axis travel	750mm
Distance between centers	750mm
Spindle bore	48mm
Spindle speed	150-2000 rpm
Spindle nose	A2-6
Spindle motor power	4.0 kw
X/Z axis position accuracy	±0.01mm
X/Z axis repeatability	±0.005mm
X/Z axis rapid feeding speed	10/10 m/min
X/Z axis drive motor power	1.5 kw
Tool post type	4 station electric turret
Tailstock sleeve dia.	Φ65mm
Tailstock sleeve travel	140mm
Tailstock taper	Morse 4
N.W.	1350/1500kg
Machine dimension (L*W*H)	150*170*185cm

Configuration
GSK980TDi Control system
3-jaw chuck(Φ160mm)
4-station Electric tool turret
Manual tailstock
Work lamp
Coolant system
Automatic lubrication
Standard safety cover
Leadscrew cover
Dead centre(MT3)
Centre sleeve(MT4/3)
Paddings
One whole set spanner
Oil gun
Tool box
Operation manual
Certifications

---
