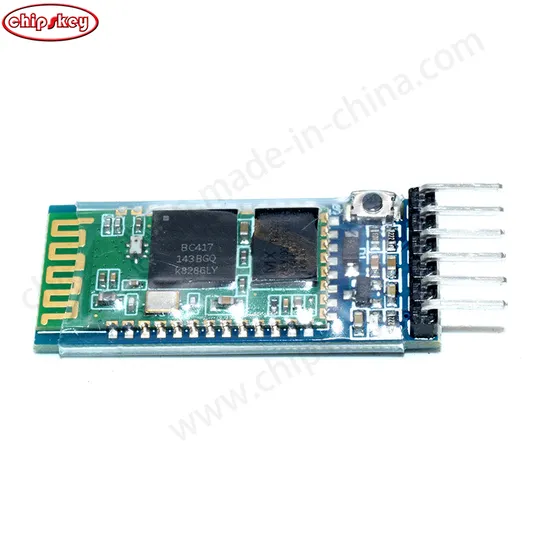

Hc-05 Bluetooth Serial Module, Wireless Serial Module

Product Description

Return policy details Buyers can return item(s) for a refund within 7 days from the day the item(s) were received, and the buyer is to afford the return shipping cost. The item(s) must be returned in the same exact condition as once it was delivered. Buyers may return the item(s) for a refund if they are not as described or with quality issues within 7 days from the day the item(s) were received.The buyer is required to afford the return shipping cost, based on the condition of the item(s) received. Description

SKU	3016
Place of Origin	China
Color	Blue
MOQ	5
Delivery time	7days
Support customization	yes

Condition: New Supply Voltage: 3.3v Model Number: hc-05 is_customized: Yes Type: 1 Serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc. HC-05 has be designed Master or Slave when the factory, user couldn`t change the role.
Bluetooth protocal: Bluetooth Specification v2.0+EDR
Frequency: 2.4GHz ISM band
Modulation: GFSK(Gaussian Frequency Shift Keying)
Emission power: 4dBm, Class 2
Sensitivity: -84dBm at 0.1% BER
Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
Security: Authentication and encryption
Profiles: Bluetooth serial port
Power supply: +3.3VDC 50mA
Working temperature: -20 ~ +75 Centigrade
Dimension: 26.9mm x 13mm x 2.2 mm
FAQ1.Are you manufacturer ?
Yes, We Are Manufacturer & Trading Company
2.How long is your delivery time?
Normally 3-5 working days after payment; Special requirement orders, delivery time is negotiable.
3.Do you accept OEM design?
Yes, we do. We can design according to your requirement, MOQ usually 500-1000.
4.What payment terms you accept?
We accept ****** Trade Assuarce, T/T, PayPal, Western Union, Wechat, Alipay, in Cash (RMB or USD).
5.What Express Company You Use ?
We Can Ship the goods Via DHL, Fedex ,TNT, UPS ,Aramex ,EMS , China Post , By Sea And By Air.Company ProfileExhibition
