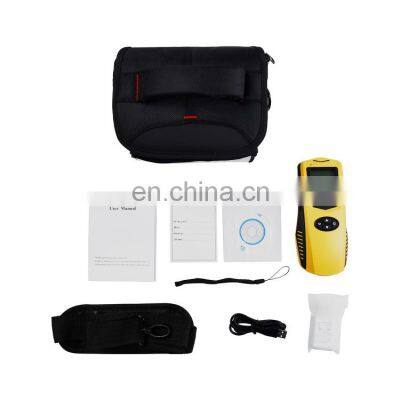

Product Usage and FeaturesPortable Rebar Detector/ScannerPRODUCT OVERVIEW:The first generation portable rebar integrated detector uses an electromagnetic induction method, which can detect the rebar location and cover thickness & diameter accurately, store, transfer and analyze the real time test data. The model is the pinnacle of work with the modern simple design, incorporating the handy & durable features and sophisticated electronic technology. series rebar detector is mainly used to test the location, distribution, direction, the thickness of rebar and the diameter of cover in concrete structure such as walls, columns, beam-slabs etc. It can also detect the location of pipelines and metal embedded parts.The multiple coil structure design make it more accurate＆responsive and higher resolution.ParametersItemsTechnical Spec.Diameter Measuring Range（mm）Ф6～Ф50Measuring Range（mm）Location Range: 1～120First Range: 1～60Second Range: 30～120Thickness Measuring Accuracy（mm）1～40±141～60±261～80±381～100±5101～120±8Rebar Location Accuracy1～60±361-120±6Diameter Measuring ModesOptionalJGJ MeasurementOptionalData StorageOptionalOff TimeAutomaticPower SupplyRechargeable Lithium BatteryWorking Temperature-10℃～+42℃Size（mm）188×145×140Weight（kg）0.745Detailed ImagesFunctions:1. measure the diameter of the rebars on the concrete surface;3. measures the location and orientation of reinforcement bar (rebar) or metal pipe.Any questions, welcome to contact our product specialist online!We wait for your inquires.Company IntroductionCangzhou Lovely Technology Co.,Ltd. It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.Packing & DeliveryAfter Sales ServiceFAQQ1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
