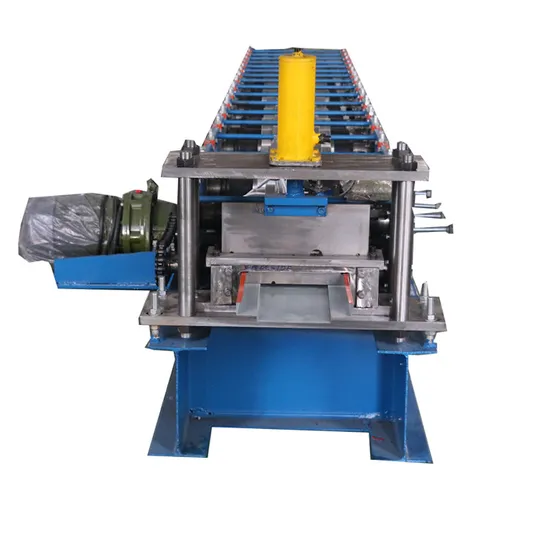

Automatic Steel Door Channel Roll Forming Machine Iron Door Frame Making Machine Guide Rail Equipment

Product Description

manufacturer door frame building machine
We are manufacturer of roll forming machine for 8 years, and ever sold machines to many countries, such as: US, UK, Canada, Russia, Zambabwe, Italy, Azerbaijan. etc.
Product Parameters
1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-1.8mm
(3) Main motor power: 7.5 kw
(4) Pump power: 4 kw
(5) Shaft diameter: 65mm
(6) Forming steps: 18 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: steel frame
(9) Medium plate thickness: 18mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized:8500mm*1000mm*1500mm
(13)Total weight: 6.5 tons
2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg
(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.
(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.
(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.
(5) Spare parts
3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
4. Warranty
24 months, and lifelong technical support service
5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
6. Package
Standard export package, water-proof package, covered with plastic film

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	set	1
4	Hydraulic pump station	set	1
5	Post cut	set	1
6	Electric motor	set	1
7	Output table	set	1

Packaging & Shipping

1.Tighten to container with steel wire rope and welded angel iron.
2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic)
3 .Roll forming machine PLC control system and moter pump are packed with water-proof plastic coveragePortTianjinLead Time :30 days after your pre-deposit
Q: Are you manufacturer?
A: Yes, we are manufacturer and trading company.

Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.

Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.

Q: What's your service ?
A: 1. We provide 1 year warranty for our customers. 2. Any parts damaged because of quality problem will be changed for free within the first year. 3. Technical support is provided for free in the whole life of the machine.

Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Tianjin airport: By high speed train From Tianjin Xi or Tianjin Nan to Cangzhou Xi (0.5 hour),then we can pick up you.
Company Profile

other machine
Welcome to our company: Cangzhou Dixin Roll Forming Machine Co.,Ltd.
ADD: Fuzhuang Development Zone, Botou City, Cangzhou, Hebei Province, China
We provide you 24-hour online service, welcome to contact.
If you want to get more information about our equipment ,
Please feel free contact me

---
