US$14,500.00-16,000.00
|
1 Piece
(MOQ)
|
Basic Info.

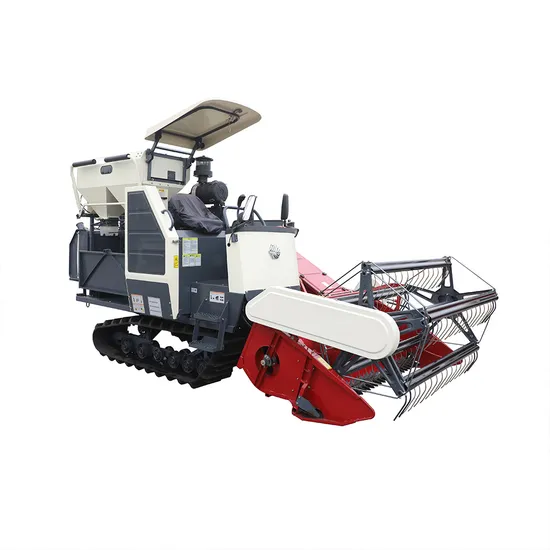

Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Application Field
Agriculture
Production Capacity
400000
Product Description
Feature:
1. Turbo engine power 88hp and Gear Box ZKB85 and HST 45cc are used for higher work efficiency.
2. Fuel tank capacity 130L can meet the whole day's work.
3. All direction grain discharging pipe brings convenience.
4. Grain Tank 1.4m3 can make sure of storing grain 800kg at least.
5. Rubber Track 450/500*90*51 and min ground clearance 30cm can make machines work faster in deep mud field.
6. New spring reel is optional.
Diameters as below:
| Model | 4LZ-4.0E |
| Type | Self-propelled full feeding |
Dimension (Operation) | Length(mm) | 4960 |
| Width(mm) | 2890 |
| Height(mm) | 2700 |
| Weight(kg) | 2800 |
| Engine | Type | In-line, Water cool, Four-stroke, Direct Injection |
| Power(HP) | 88 |
| RPM(r/min) | 2650 |
| Fuel tank(L) | 130 |
| Gear Box Model | Hydraulic Gear Box ZKB85 |
| | HST | 45CC |
| Walking Part | Track(mm) | 500*90*51 |
| Track Gauge(mm) | 1150 |
| Ground Clearance(mm) | 320 |
| Harvesting | Cutting Width(mm) | 2000/2100 |
| Feeding Capacity (kg/s) | 4 |
| Cutting Bar Lift | Hydraulic Control |
| Threshing | Type | Axial Flow Type with Beat Bars |
| Threshing Cylinder (mm) | 620*2000 |
| Cleaning Type | Vibrating Sieves+ Centrifugal Fan |
| Discharging | Small Grain Tank (0.35m3) | Manual |
| Work efficiency | (ha./h) | 0.37-0.66 |
| Crops | | Rice, Wheat, Soybean,Rapeseed |
>>
