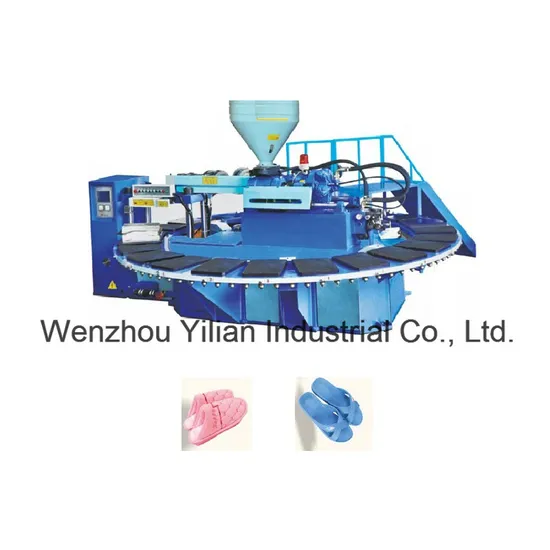

Full Automitac PVC Air Blowing Slipper Machine

Product Description

WENZHOU YILIAN INDUSTRIAL CO., LTD
ADD: ROOM 614,6 BUILDING,WANGDA PLAZA,LONGWANG,WENZHOU, ZHEJIANG,CHINA
Tel:0086-577-55590380 Web: wzyilian.en.made-in-china.com
Machine Advantage
1.Used for shoes
2.Save power
3.Saving labors
4.High rate
5.Qualified products
6.Bulk supply
7.Easy operation
8.Fully automatic
9.Unexperienced workers can also run the production.
10.Convenient maintenance
Feature
1.Suitable for flat mold/V-block mold with produce the one color, two color or three color leisure shoe soles, male and female slippers and sandals , air blowing shoes and sport shoes which are made of PVC,TPR,TPU,PP materials.
2.PLC control of industrial man-machine interface and touch screen , easy for operation.
3.High speed electronic ruler and eletronic counting coding technology to acheive precise control of injection molding machine.
4.It adopts high pressure to lock mould, so that the shoe sole quality will be perfect.
5.Together with electronic control circuit to reduce the waiting time, the production speed can improve quikly and increase production,reduce energy consumption.
6.The oil pump of the motor is outside placed,causing a better radiating effect and thus a longer duration of the machine.

MODEL	UNIT	YL-3120B	YL-3124B
Mold Station	Pcs	20	24
Mold Clamping Force	tons	120	120
Injection Pressure	tons	35	35
Screw Dia.	mm	φ65/φ55/φ55	φ65/φ55/φ55
Max. Injection Volume	cm³	600/430/430	600/430/430
Total Power	kw	75	75
Machine Weight	ton	10	10.5
Machine Dimension(L×W×H)	m	5.95×5.6×2.65	5.95×5.6×2.65

Why Choose Yilian PVC Shoes machine
. 15 years manufacturer experiences and 8 years exporter experience
. Good after-sales service,has after-sales office aboard,help installation,trial and trainning.
. high quality and imported spare parts makes machine good quality
Q1: Are you trading company or manufacturer?
A:We have a factory.You are most welcomed to visit us for any requirement.
Q2: What's the delivery time?
A:Around 15-20 days after we receiving your deposit.
Q3:Can we use our own brand?
A:Yes,we can accept OEM also.
Q4: What about your machine warranty?
A:Our machine's warranty is 1 year (from the installation date)for all machine parts.
Q5: If the machine's spare parts broke, where can I get ?
A:We will give you free spare parts along with the shipment.
In case some parts is broken during warranty,you can easily get them in our aftersales office aboard.
Q6:What is the material of your product?
A:We use 304 stainless steel for our main machine,conveyor use 5mm thinckess carbon steel,very solid and strong.Key electic component we are imported.
Q7:Do you also supply mould?
A:YES,we have shoe mould factory.We can make mould as per customer design.

---
