Energy Saving Gypsum Calcining Rotary Kiln, High Quality Iron Ore Rotary Kiln, Calcined Dolomite Price

Product Description

Industrial Sand Active Lime Production Process Rotary Kiln For Cement, High Quality Rotary Kiln, Lime Rotary Kiln
1. Introduction of Professional Rotary, Calcination Rotary Kiln For Bauxite
Rotary kiln belongs to building material equipment, which is the main equipment of cement production process, so it is also known as cement rotary kiln. At the same time, it can be used in metallurgy and chemical industries, which is suitable for non-ferrous metals, concentrate, coarse ore, intermediate, lime, dolomite, etc. Rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different processing of materials.
2. Application of Professional Rotary, Calcination Rotary Kiln For Bauxite
Application Fields: Lean iron ore magnetizing roasting; chromium and nickel iron oxidizing roasting in steel plants of metallurgy industry.
Wide Application Range of Rotary Kiln
According to the exterior, the rotary kilns can be divided into diameter changes rotary kiln and size rotary kiln, into cement rotary kilns, ceramsite sand rotary kilns, soil rotary kilns and lime rotary kilns based on the purposes, into gas powered rotary kiln, coal-fired rotary kiln and mixed fuel rotary kiln depending on the different effects.
Professional Rotary Kiln Manufacturer, Calcination Rotary Kiln For Bauxite
3. Features of Professional Rotary, Calcination Rotary Kiln For Bauxite
1. Solid structure, stable performance, high production efficiency.
2. Convenient operation, easy repair. Its energy consumption is reduced by 15% compared with the same kind of products.
3. The duration is far more than the same kind of products.
4. The stable performance and advanced structure have greatly improved its preheating effects.
5. Advanced processing technology, high cost performance ratio.
6. It can roast cement and metal ore with controllable temperature and wide application ranges.
4. Advantages of Professional Rotary, Calcination Rotary Kiln For Bauxite
Less maintenance
Simple to operate
Short Gestation period
Better efficiency in power consumption
Abundant fuel saving
Low Installed Cost
Trusted and proven trouble free technology
5. Construction of Professional Rotary Kiln, Calcination Rotary Kiln For Bauxite

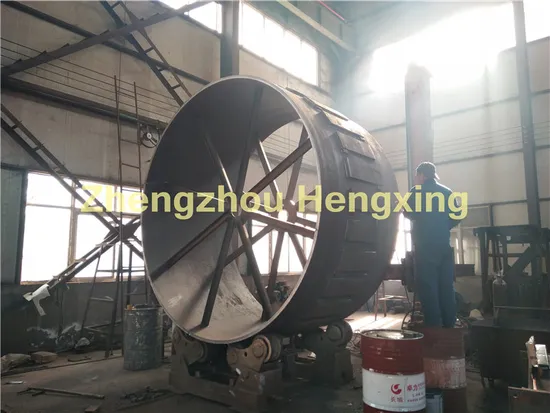

The basic components of a rotary kiln are the refractory lined shell, support tyres and rollers, drive gear and burner system. A typical Rotary Kiln is cylindrical shell, slightly inclined from the horizontal and supported on two or more tyres, which in rotate on rollers. One of the tyre is fixed by a set of thrust rollers to take care of the thrust load during kiln movement. The drum assembly along with tyres is rotated by a girth gear/pinion arrangement.
6. Parameters of Professional Rotary Kiln, Calcination Rotary Kiln For Bauxite

Specification (m)	Kiln dimensions					Motor power (kw)	Total weight (t)	Note
	Diameter (m)	Length (m)	Obliquity (%)	Capacity (t/d)	Rotation speed (r/min)
Φ2.5×40	3.2	50	4	1000	0.6-3	125	278	Outside disassemble kiln
Φ2.5×50	3	60	3.5	300	0.3-2	100	310	Alumyte-alumina forge kiln
Φ2.5×54	3	48	3.5	700	0.6-3.48	100	237	Outside disassemble kiln
Φ2.5×40	3.2	50	4	1000	0.6-3	125	278	Outside disassemble kiln
Φ2.7×42	3	45	3.5	500	0.5-2.47	75	210.94	------
Φ2.8×44	2.8	44	3.5	400	0.437-2.18	55	201.58	Outside disassemble kiln
Φ2.8×44	2.8	44	3.5	400	0.437-2.18	55	201.58	Outside disassemble kiln
Φ3.0×45	2.7	42	3.5	320	0.10-1.52	55	198.5	------
Φ3.0×48	2.5	54	3.5	204	0.48-1.45	55	196.29	------
Φ3.0×45	2.7	42	3.5	320	0.10-1.52	55	198.5	------
Φ3.0×60	2.5	50	3	200	0.62-1.86	55	187.37	------
Φ3.2×50	2.5	40	3.5	180	0.44-2.44	55	149.61	Kiln with shaft cyclone preheater
Φ3.3×52	3.3	52	3.5	1300	0.266-2.66	125	283	Kiln with preheater precalcine
Φ3.5×54	3.5	54	3.5	1500	0.55-3.4	220	363	Kiln with preheater precalcine
Φ3.6×70	3.6	70	3.5	1800	0.25-1.25	125	419	Generating kiln for using of the heat
Φ4.0×56	4	56	4	2300	0.41-4.07	315	456	Kiln with preheater precalcine
Φ4.0×60	4	60	3.5	2500	0.396-3.96	315	510	Kiln with preheater precalcine
Φ4.2×60	4.2	60	4	2750	0.41-4.07	375	633	Kiln with preheater precalcine
Φ4.3×60	4.3	60	3.5	3200	0.396-3.96	375	583	Kiln with preheater precalcine
Φ4.5×66	4.5	66	3.5	4000	0.41-4.1	560	710.4	Kiln with preheater precalcine
Φ4.7×74	4.7	74	4	4500	0.35-4	630	849	Kiln with preheater precalcine
Φ4.8×74	4.8	74	4	5000	0.396-3.96	630	899	Kiln with preheater precalcine
Φ5.0×74	5	74	4	6000	0.35-4	710	944	Kiln with preheater precalcine
Φ5.6×87	5.6	87	4	8000	Max4.23	800	1265	Kiln with preheater precalcine
Φ6.0×95	6	95	4	10000	Max5	950×2	1659	Kiln with preheater precalcine
