Product Details
Product Description
Product Description
Product Description

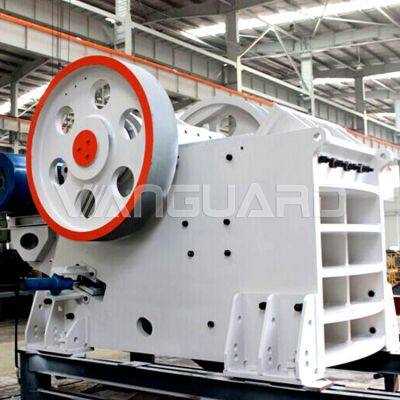

6CX series Jaw Crusher has adopted world' s most advance crushing technology and research achievement; it is the new crusher with the world' s advanced level, and it’s successfully developed by using finite element analysis method based on years' experience on jaw crusher design and manufacture. The overall performance advantages of this product has made it one of the most popular equipment in the crushing industry.
PRODUCT ADVANTAGES
Cavity designed with high crushing efficiency
The crusher possesses "V" structure chamber, optimum configuration crushing chamber and trajectory parameters of moving jaw and super large crushing stroke, maximizing the feeding size, capacity and crushing ratio.
Elastic damping design reduces the impact force of equipment
Replacing the original rigid foot connection with elastic limit block and rubber damping device which effectively absorbs peak load of vibration, so as to reduce the impact between crusher and foundation and improve the service life of equipment.
Integrated design saves installation space
Integrative motor cabinet reduces mounting space and makes the power output more stable.
High quality casting and forging and flexible switching of stationary or mobile operation
Strong power matched with reasonable rotational speed to ensure stable and efficient production of equipment.
PRODUCT PARAMETERS
Model
| 6CX80
| 6CX100
| 6CX106
| 6CX110
| 6CX125
| 6CX140
| 6CX145
| 6CX160
|
The feeding mouth(mm)
| 800×510
| 1000×760
| 1060×700
| 1100×850
| 1250×950
| 1400×1070
| 1400×1100
| 1600×1200
|
Motor power(kw)
| 75
| 110(90)
| 110
| 132(160)
| 160(132)
| 200(160)
| 200
| 250(200)
|
Speed(rpm)
| 350
| 260
| 280
| 230
| 220
| 220
| 220
| 220
|
Fixed Jaw lenght(mm)
| 1100
| 1600
| 1450
| 1800
| 2000
| 2100
| 2300
| 2500
|
Maintenance maximum weight(kg)
(without the flywheel jaw assembly)
| 2870
| 7060
| 4020
| 9000
| 12960
| 15950
| 18600
| 21380
|
Total weight(kg)
(Do not include motor and accessories)
| 7520
| 20100
| 13500
| 25060
| 36700
| 45300
| 53800
| 68600
|
Width of feeding port(mm)
| 800
| 1000
| 1060
| 1100
| 1250
| 1400
| 1400
| 1600
|
Feed depth(mm)
| 510
| 760
| 700
| 850
| 950
| 1070
| 1100
| 1200
|
Product size(mm)
| Tight edge discharge port(mm)
| Ton/hour
| Ton/hour
| Ton/hour
| Ton/hour
| Ton/hour
| Ton/hour
| Ton/hour
| Ton/hour
|
0-30
| 20
|
|
|
|
|
|
|
|
|
0-35
| 25
|
|
|
|
|
|
|
|
|
0-45
| 30
|
|
|
|
|
|
|
|
|
0-60
| 40
| 65-85
|
|
|
|
|
|
|
|
0-75
| 50
| 80-95
|
|
|
|
|
|
|
|
0-90
| 60
| 95-125
|
|
|
|
|
|
|
|
0-105
| 70
| 115-150
| 150-210
| 155-200
| 190-250
|
|
|
|
|
0-120
| 80
| 130-170
| 170-225
| 175-230
| 210-275
|
|
|
|
|
0-135
| 90
| 150-195
| 190-245
| 200-260
| 235-305
|
|
|
|
|
0-150
| 100
| 165-215
| 215-280
| 220-290
| 255-330
| 290-380
|
|
|
|
0-185
| 125
| 210-275
| 265-345
| 280-365
| 310-405
| 350-455
| 385-500
| 400-520
|
|
0-225
| 150
| 250-325
| 315-410
| 335-435
| 370-480
| 410-535
| 455-590
| 470-610
| 520-675
|
0-260
| 175
| 290-380
| 370-480
| 390-510
| 425-550
| 470-610
| 520-675
| 540-700
| 595-775
|
0-300
| 200
|
| 420-545
| 445-580
| 480-625
| 530-690
| 590-765
| 610-795
| 675-880
|
0-340
| 225
|
|
|
|
| 590-770
| 655-850
| 680-885
| 750-975
|
0-375
| 250
|
|
|
|
| 650-845
| 725-945
| 750-975
| 825-1070
|
0-410
| 275
|
|
|
|
|
|
| 820-1070
| 900-1170
|
0-450
| 300
|
|
|
|
|
|
|
|
|
Processed Materials:
Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble, etc.
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, mineral processing machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
