Medical Standard SSS Nonwoven Fabric Making Machine/ Nonwoven Fabric Production Line

US$520,000.00 1 Sets (MOQ)

Basic Info.

Model NO.
pp Spunbond NonWoven Machine
Automatic Grade
Automatic
Certification
CE SGS ISO9001
Condition
New
Raw Material
Polypropylene Chips
Key Selling Points
Long Service Life
After Warranty Service
Video Technical Support, Online Support
Weight
20t
Voltage
220V to 440V
Warranty of Core Components
2 Years
Width
2400mm
Power
250kw
Core Components
PLC, Engine, Bearing, Gearbox, Motor
Applicable Industries
Garment Shops, Building Material Shops
Power Input
350kVA
Machine Type
Al-2400mm Ss
Capacity
4800ton/Year
Final Froducts
Ss Spunbond Nonwoven Fabric
Transport Package
Export Standard Packing
Trademark
AL
Origin
Zhejiang, China
Production Capacity
1 Set/Sets Per Month, 3500t

Packaging & Delivery

Package Size
3600.00cm * 1300.00cm * 1200.00cm
Package Gross Weight
20000.000kg

Product Description

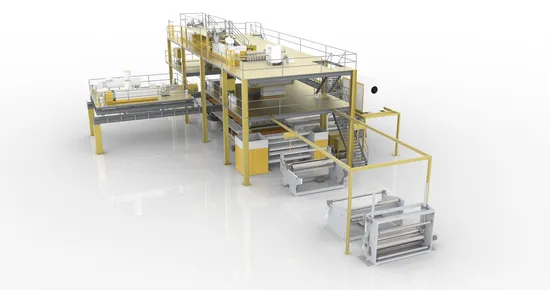

Medical Standard SSS Nonwoven Fabric Making Machine/ Nonwoven Fabric Production Line
Product Description
Three beams nonwoven machine is also short for SSS. Three beams form one web by spun bonding. The spunbond nonwoven is generated by extruding a thermoplastic fiber polymer into fine filaments fiber. The size arranges from fifteen to thirty-five micrometer diameter. The filaments are collected on a conveyer belt in the form of a web. Then it is bonded to make spunbond nonwoven fabric. The nonwoven fabrics possess properties of excellent burst strengths, stability to heat & chemicals, porosity and tear strength.
SSS Nonwoven Fabric Application SSS nonwoven fabrics are commonly used in healthy products such as baby diaper, sanitary napkin, face mask. It's also workable for material of garments and shoes such as clothes interlining and shoe cover.
Model No. SSS-1600 SSS-2400 SSS-3200
Machine Size L31*W13*H10m L32*W14*H10m L34*W15*H10m
Machine Speed 450m/min 450m/min 450m/min
Gram Weight 10-150 GSM 10-150 GSM 10-150 GSM
Daily Output 12 tons 24 tons 28 tons
Nonwoven Width 1600 mm 2400 mm 3200 mm

S Model ( Packagings, Agricultural Cover )
Working Width Fabric GSM Consumption Annual Output/Year
1600mm 10-200 130KW 1500T
2400mm 10-200 180KW 2400T
3200mm 10-200 200KW 3000T
4200mm 10-200 300KW 3800T

SS Model ( Baby Diaper, Medical Products )
Working Width Fabric GSM Consumption Annual Output/Year
1600mm 10-200 200KW 3000T
2400mm 10-200 250KW 4800T
3200mm 10-250 300KW 6000T
4200mm 10-200 450KW 7500T

SMS/SMMS/SSMS/SSMMS Model ( Filtration Material, Baby Diaper, Medical Products )
Working Width Fabric GSM Consumption Annual Output/Year
1600mm 10-150 400KW 3500T
2400mm 10-150 600KW 5000T
3200mm 10-150 800KW 6500T



Installation Instructions
Working Process of PP Spunbond Nonwoven Fabric Making Machine.
Additive (recycling waste )----->Raw material----> Melting and Extruding----->Filtering----> Measuring----> Spinning ----> Cooling-----> Air drawing----->Web forming ----> Calendering---->rolling up----> cutting and packing
Company Profile
Application


FAQ
1. Are you factory or trading company?
We are factory with export rights. We manufacture machines and export to customers by ourself.
2. Which payment term is accepted?
30% in advanced payment+70% payment paid before shipment.
Welcome your inspection before shipment.
3. How to visit your factory?
Our factory is in yiwu city, Zhejiang Province, about two hour by train from Shanghai. Welcome to visit us!
