Factory Milk Yogurt Drinks Juice Aseptic Brick Paper Box Carton Filling Sealing Packing Packaging Machine

Product Description

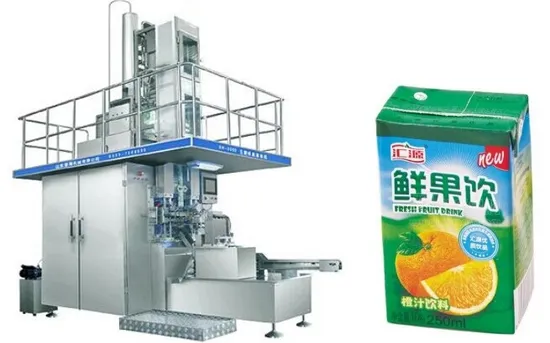

New aseptic carton filling sealing machine
Specification:
This machine is designed to form,fill and seal of aseptic cartons. It was developed and improved on basis of many year research, and combines the advantages of popular carton filling machines on national and international markets.
The aseptic processing equipment is scientific in structural design, easy in handle, nice in appearance. Precise in metering, stable in performance and convenient in maintenance. By contrast , among many liquid packing machines with the similar price, our aseptic vertical form fill seal machine has the highest output efficiency.

This machine adopts the pneumatic transmission system to enhance reliability. Its employment of PLC control system and touch screen human machine interface allows for automatic completion of steps from package material sterilization, drying ,aseptic carton forming, aseptic filling , filling volume control, sealing , to end product output.

Due to above advantages, our range of aseptic vertical form fill seal machine is widely used in food and beverage industries for aseptic processing of milk, soy milk, peanut milk, and fruit juice.
1) The machine is suitable for filling milk, juice, soymilk etc other beverage.
2) The machine Automatic Form Feed -sterilize -filling -shaping - sealing
3) PLC human control, Human - Machine Interface with English and Chinese display. Intuitive operation and Low Fault rate.
4) Automatic finished all the job step, which includes run over the scroll reposefully, batch number, stick plastic tape, chemical and physical sterilizing, roll into cylinder, filling material, sealing-off, molding, cutting and horn-shaped.
5) The forming system we choose our own patent rectangular forming method instead of roundness system. this system made the running much more stable, the function much more reliable, the exterior appearance of the product much perfect.

The aseptic processing and packaging system is made up of the electrical control system, light box, air sterilization system,membrane stretching mechanism, liquid filling system, and aseptic carton making system.
Main Technical Parameters.

Machine Type	GY-100ml, GY-125ml, GY-150ml, GY-200ml, GY-250ml, GY-330ml, GY-500ml, GY-1000ml
Capacity(Box Volume)	100ml-1000ml
Compressed Air Pressure	≥0.6mpa(6Bar)
Packing Speed	3000-15000 carton/hour
Power	10~18KW
Actual Power Consumption	8KW
Power Source	50Hz 380/220V
Sizes	L*W*H 4200*1800*4000mm
Weight	2500KG

Package shape	Brick based shaped ,brick slim shaped
Packing material	PE/PAPER/PE/AL/PE/PE 6layer aseptic packaging material roll
Compressed air	0.4-0.6Mpa,1.0m3/min
Technological process	Feed paper---print date---sterilize---filling---shaping
Operation model	PLC control,man-machine interface operation
Shelf life	In 20-30ºC,juice 12month ,milk 6 month
Production Area	100-140sq.m
Production personal	1-2per shift
Final product	Drinking Milk ,Yoghurt, Juice
