Product Description
Product Description

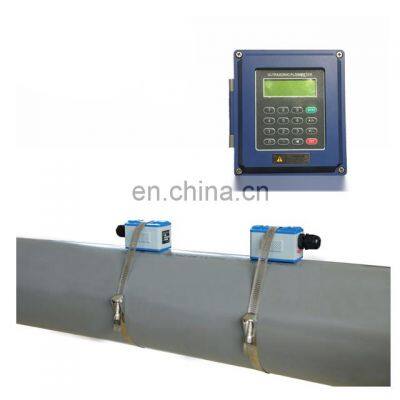

Product DescriptionIn order to help you get the exact model, pls offer the following necessary info: 1. The pipe size is DN___mm or ___inch . 2. The medium is _____. 3. Temperature is _____ °C. 4. The material of the pipe is _____. 5. Other requirements :_____. If you have any query, pls feel free to contact me.Fixed Inline Ultrasonic Flow Meter With Temperature Sensor Used AS Ultrasonic Energy Meter TUF-2000B High accuracy within ±1% Convertor protection class IP67,transducer protection class IP68Wide measurment range, pipe size from DN15mm to DN6000mmMultiple signal output, achieve remote monitoring.Achieve heat measurement by connecting 3-wired heat transducers PT100.Fixed Inline Ultrasonic Flow Meter With Temperature Sensor Used AS Ultrasonic Energy Meter TUF-2000B1. Pipe Size: DN15~DN60002. The main unit suits to install on the wall or distribution box, ABS Plastic body make the protection class achieve to IP68.Adapt to many severe working environment.3. OEM supported.4. Protection Class: ABS body, IP67Specification Items Performance &Parameter Model Wall Mounted Ultrasonic Water Flow Meter Pipe Size DN15~DN6000mm Accurancy +-1% Flow rate 0~7 m/s Power consumption 1.5W Power supply DC8~36V or AC85~264V(optional) Signal Output 1 way 4-20mA output1 way OCT pulse output1 way Relay output Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. Communication interface RS485, support MODBUSSensor OptionClamp on sensor & Insertion sensor & Temperature sensor Usage Method:Install first transducer after choosing install point; Clean up pipe surface(include oil paint, rust etc).According toinstructions, fix clamp near by install point.Smear couplant on transducer surface, fix the transducer on install point.Fix another transducer according to install distance.Note: The transmitting direction of transducers is opposite; The clamps' matrial is 304stainless steell .How to workFixed Inline Ultrasonic Flow Meter With Temperature Sensor Used AS Ultrasonic Energy Meter TUF-2000BTUF2000B can work with insertions transducer, thread transducer, clamp on transducerPacking & DeliveryTUF2000B Wall mounted Fixed Ultrasonic Flow meter with all accessories will be send out in protection caton box via express.Company ProfieDalian Taijia Technology Co.,LtdDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:ndt@tmeasurement.comTEL:86-411-39685079Whatsapp:+86 15998577470Skype:tmeasurement04Web:/; Recommend ProductsTUF-2000H Hand Held ultrasonic fllow meterTEM82E Electromagnetic flow meterTUF-2000M Modular Ultrasonic Energy MeterTM8812Ultrasonic Thickness GaugeTDS-100F1Wall mounted ultrasonic flow meter
>>
