Heavy Duty CNC Drilling&Milling Process Center

Product Description

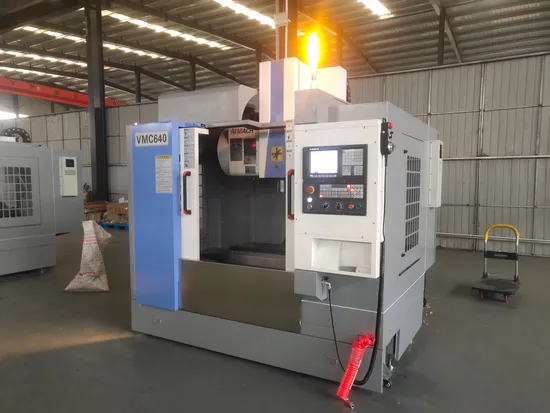

	VMC640---Linear guideways in 3 axes
Travel	X axis	600mm
	Y axis	400mm
	Z axis	450mm
	Spindle nose to table	80-530mm
	Spindle center to column	430mm
Feed	max X rapid feed	24 m/min
	max Y rapid feed	24 m/min
	max Z rapid feed	20 m/min
	Cutting feed	1-10m/min
Table	Table size	800×320mm
	Max load	400Kg
	T slot	16×3
	Speed	8000rpm
	Spindle taper	BT40-120
	Main motor	3.7 KW
Tool Changer	Tool changer type
	Tool capacity	116
	Tool changing time	2.5 seconds
Accuracy	Accuracy	±0.006 mm
	Repeatability	0.008mm
Other	Weight	2500 Kgs
	Size	2200×1900×2500

Item	Origin	Brand	Spec
Spindle unit	Taiwan		BT40-120
Linear guideways	Taiwan	hiwin	Diameter 30mm
Ball screws(C3 )	China		C3 class
Bearings	Germany	IBC	BS25M52
Nuts	Taiwan		M25X1.5
Electronics	French	Scneidar	Set

Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
CNC machine center
Vertical machine center
Taiwan spindle, Taiwan linear guideways

NO.	ITEM				Specification
1	Table size L(mm)× W(mm)				900× 360
2	T slot QTY /width/interval distance(mm)				3-14-120
3	Maximum load(KG)				400
4	X travel (mm)				650
5	Y travel (mm)				380
6	Z travel (mm)				480
7	Spindle nose to table (mm)				100-600
8	Spindle center to column (mm)				410
9	Spindle taper				BT40/120
10	Max. spindle speed (Rpm)				8000
11	Main motor (kW)				7.5
12	Feed motor		X torque(N. M)		6
			Y torque(N. M)		7.7
			Ztorque(N. M)		7.7
			Max. install size		7.5
13	Rapid moving speed (m/min. )				12/12/10
14	Cutting speed (mm/min)				1-6000
15	Ball screw (diametermm/pitch )mm				32/10
17	Accuracy	Positioning accuracy (mm)			0.016
		Repeatability accuracy (mm)			0.008
18	Tool changer	Funnel type (optional ) BT40			10 or 12
19	Air pressure Mpa				0.6
20	Machine weight (kg)			Frame	2500
				Complete machine	3000
21	Machine overall size: L(mm)× W(mm)× H(mm)			Frame	2200× 1550× 2000
				Complete machine	2500x2250x2300

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

---
