Sj45 for Filament PLA ABS ASA PETG Extruding Extruder Machine 3D Printers Filament Extruder

Product Description

: SJ45-28: 15~25kg/h

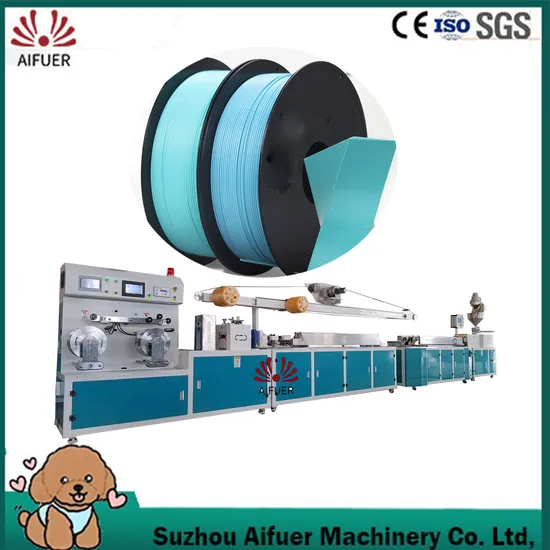

This filament extruder shown in the video is our SJ45-28. It is the same as our big filament extruder machine, adopting servowinding and tension controlled storage system.
Screw dia.:¢45mm
L/D: 28:1
Screw max. Rotation speed:72 rpm
Heating zone : 3 zones
Heating power: 1.2* 4kw
Heating ring: Stainless steel cover Heating method: Ceramic 2heater
Main motor power:2.2KW motor
Connection method for motor and reducer: Straight connection
Cabinet material:aluminium alloy
Center height: 960mm
Material: stainless steel 304
Air cooling table length: 3000mm
Forming table length: 3000mm
Air cooling platform height: 900mm
Variable frequency control
Fan outlet *4

Raw material	PEKK ,PEEK ,PPA,PAS etc
Capacity	15-20kg/h
Filament dia.	1.75mm
Filament dia. tolerance	+/-0.03-0.05mm
Speed	Adjustable

---
