Basic Info.
Depth of Drilling
Less Than 5 Meter
Drilling Speed
16 Meter Per Hour
Application
Construction, Mineral Industry, Stone Industry
Air Consumption (L/S)
9.50
Transport Package
Wooden Box
Specification
ISO9001 CE SGS
Production Capacity
10000 PCS/Month
Product Description
Description:

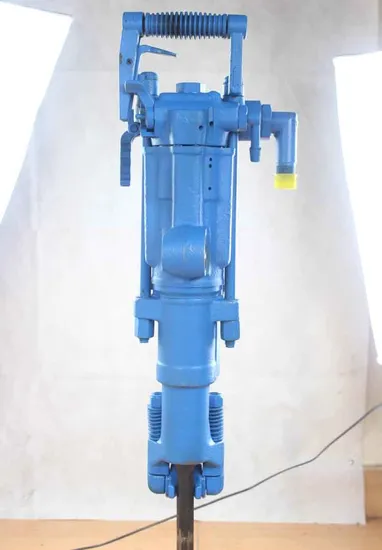

Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Y6 use small taper drill rod with taper chisel bit, diameter 17-22 mm, and use plug hole integral steel also as for stone working, stone trimming, and 2nd splitting blocks.
Product features:
Model Y6 Hand-held Rock Drill is a light-duty tool designed for quarrying and drilling operations. You may expect satisfactory results with the adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting of rock, it is most suitable for drilling in marble and granite.
Specification:
| Model | Y6 | Y8 | Y10 | Y20 | Y19A | Y24 | Y26 | Y28 |
| Weight(kg) | 6 | 6 | 10 | 18 | 19 | 24 | 26 | 26 |
| Air consumption (L/s) | ≤9.5 | <9.0 | ≤9 | 25 | 43 | ≤50 | ≤47 | |
| length (mm) | 426 | 428 | 458 | 605 | 600 | 604 | 650 | 661 |
| shank (mm) | 15*88 | 15*88 | 15*88 | 22*108 | 22*108 | 22*108 | 22(25)*108 | 22*108 |
| Bore Dia (mm) | 20 | 20-30 | 20-30 | 30-42 | 30-42 | 30-42 | 30-42 | 34-42 |
| Drill depth (m) | 0.5 | 0.5 | 0.5 | 3 | 5 | 5 | 5 | 5 |
| Impact rate (Hz) | 51 | 51 | ≥51 | 34 | 35 | 30 | 27 | ≥28 |
| Hose connection(mm) | 13 | | | 16 or19 | 19 | 19 | 19 | |
| Air pressure(Mpa) | | 0.4-0.63 | 0.2-0.3 | | | 0.4 | 0.4 | 0.4 |
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
>>
