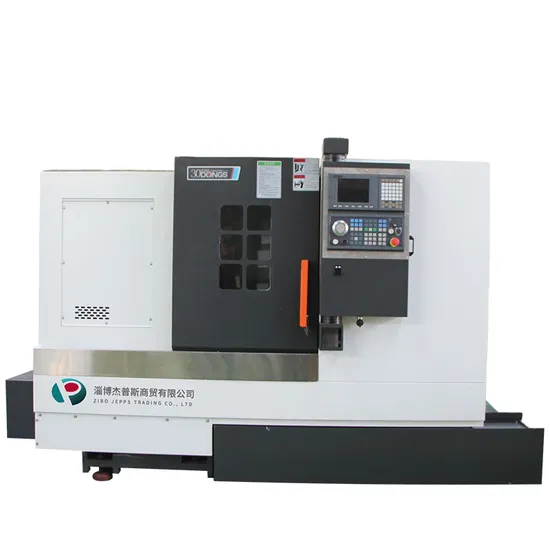

Flat Bed Horizontal CNC Lathe Turning Center Ck6150

Product Description

Product Description
Product Description
CNC Lathe Features
1. High strength of the base, widened pallet, suitable for strong turning
2. Four-station electric tool rest
3. Frequency conversion stepless speed regulation
4. Internal stress annealing process
5. High strength cast iron
CNC Lathe Technical Parameter:

Specification	Units	CK6150
Max.swing over bed	mm	500
Max.swing over cross slide	mm	250
Max.turning length	mm	850/1350/1850
Max.bar capacity	mm	Ø82/130
Spindle nose(optinal chuck)		A2-8/A2-11
Spindle motor power	kw	7.5
Max.spindle speed	rpm	800
Spindle bore	mm	Ø82/130
X/Z axis rapid traverse	m/min	6/8
X axis limit Travel	mm	280
Z axis limit Travel	mm	1000/1500/2000
X axis motor torque	N.m	7.5
Z axis motor torque	N.m	7.5
X/Z axis repeatability	mm	0.002
Tailstock bore	mm	75
Tailstock quill travel	mm	150
Total power	kw	11
Tailstock taper		MT5
Machine dimensions(L*W*H)	mm	2650*1700*1820mm
Weight	kg	3000

1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.

---
