Lollipop Paper Stick Candy Stick Making Machine

Product Description

Product Description

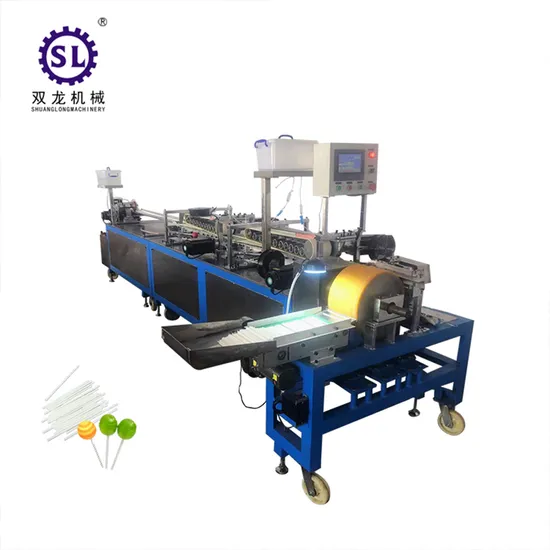

Paper Stick Making Machine
Detailed Photos
Paper Stick are used widely in our daily life:
paper feeding mechanism The paper roll fixing mode is divided into two types:
built-in type and outer frame type according to the diameter of the paper roll.
Magnetic powder tension controller is a device to ensure that the paper has enough tension to ensure that the paper stick forming belt. Paper cutting machanism the paper cutting roller will automatically cut the formed paper stick according to the set length.
Note: The thickness of the paper determines the diameter of the paper stick, so you must tell the thickness of the paper before ordering.
The thickness of the regular paper: thin axis paper stick: φ1.4-2.0mm, 30-50 grams of paper is used (gram weight per square meter)
Thick-axis paper stick: φ2.0-3.0mm, use 50-70 grams of paper (gram weight per square meter) Paper stick forming mechanism The rubber presses the cut shaped paper stick tightly on the shaping template and twist the paper stick into a predetermined diameter, the formed paper stick is sent out through the receiving conveyor belt Gluing mechanism the glue coating wheel completes the glue application, and the amount of glue is adjusted and controlled by the glue motor.
Note: glue and making
Generally, polyvinyl alcohol powder is added to water to melt and can be adjusted into paper stick machine glue.
Making method: add one part of polyvinyl alcohol powder to two parts of water, stir evenly, heat to melt into syrup, then when using, you can take one part of the melted glue and add ten parts of water and mix it evenly, because polyvinyl alcohol is a kind of sugar,so the paper stick made belongs to the environmental protection paper stick, which can be used as lollipops and other foods.
The end cutting is completed by the matching machine, and the cutting knife is installed on the knife holder according to the required size of each manufacturer and then driven by the rubber wheel,rotate the paper stick and cut off both ends smoothly. Conveyor belt feeding mechanism the paper sticks have been cut the end fall on the conveyor belt installed at the lower part, and are sent out to the box-shaped platform smoothly, waiting to be collected.
Stick cutting machine

Model number	SL-ZP01
Low voltage electrical appliances	CHNT
PLC Control	TAIWAN,FATEK
Touch screen	KINCO
Main motor	SHANGHAI MOTOR
Stepper Motor	CHINA
Magnetic powder	CHINA

Model number	SL-ZB01
Total power	7KW
Voltage	380V/50Hz
Main motor	1.5Kw
Production speed	120meter/minute,different paper stick diameter and length got different production speed.
Paper stick diameter	1.5mm-2.8mm
Paper stick length	68-150mm Can be specified
Dimension	L*W*H 4000mm*1500mm*1550mm
Weight	900kg
Magnetic powder	2.5KG

Model number	SL-QB01
Total power	1KW
Voltage	380V/50Hz
Main motor	0.75Kw
Cutting speed	3000PCS/min
Paper stick diameter	1.5mm-4.5mm
Paper stick length	68-150mm Can be specified
Dimension	L*W*H 1500mm*700mm*1200mm
Weight	150kg
Inverter	DELTA
Motor	SAHNGHAI MOTOR

Packaging & Shipping
Company Profile
Wenzhou Shuanglong Machinery Co., Ltd. is an enterprise that specialized in complete set of plastic soft packaging equipment. Our company have more than ten varieties of high-quality products, such as Extrusion coating lamination machine, Embossing machine, Slitting rewind machine, Straw making & packing machine, Paper stick machine, Rotogravure printing machine, Dry laminating machine and Inspection machine, Flexo printing machine etc. With the purpose of "Quality creats brand, brand promots developing", we provide a wide range of reliable performance, high quality and reasonable price products.
With the philosophy of " Quality of products is quality of life", we makes Shuanglong products fully into life and provide clientsa better service! FAQ
Question 1: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services? Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC

---
