Professional-Grade Vacuum Former Thermoforming Machines for Suitcase

Product Description

Products Description:
Professional-Grade Vacuum Former Thermoforming Machines For Suitcase
Parameters:

Model	UINT	CX-20P	CX-24P	CX-28P	CX-32P
Thickness	MM	1-4
Input power	V	380v±10%,50HZ
Vacuum capacity	M³	0.15	0.2	0.25	0.35
Vacuum pressure	MPA	-0.07 ~ -0.09
Air pressure	MPA	0.65-0.75
Air consumption	L / MIN	400	500	620	750
ABS case max.output	pcs / H	120	115	95	85
PC case max.output	pcs / H	95	90	75	60
Weight	T	2.2	2.5	2.8	3.2
Total Power	KW	38	50	60	67
Forming Dimension	MM	600*420*200	690*510*200	780*600*200	880*680*230
Overall Dimension(L*W*H )	MM	2900*1560*2430	3200*1660*2430	3500*1760*2430	3800*1890*2430

Machine Feature:
1)There are two working modes: Automatic and Manual working modes,can be choose by customers
2)All heaters are controlled separately,easy to be adjusted.
3)It is adopted silencing Technology.Machine moving and working silently.
4)The cooling system can change any direction where you want to cool down most.
5)Safety.Once Power failure without control,the frame will slowly drop and will not fall down at once to hurt worker's hands
6)The frames are painted with high temperature resistance material, can up to 500 degree.It can keep frame good color
7)Sheet can be preheated automatically to save electricity and time.

Application:

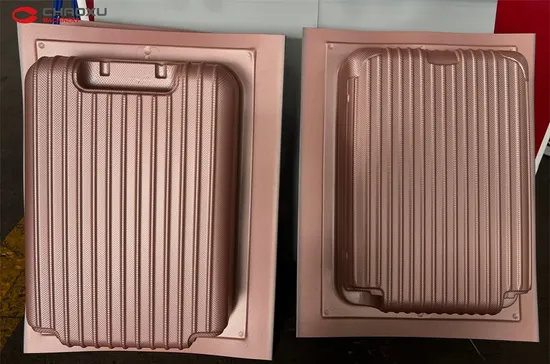

This machine is suitable for forming of such sheet as ABS,PC or recycled material.It is special for processing luggage/trolley case shell professionally with fast speed and high quality.
The CX-P series is provided with automatic separated frame operation and upper-lower double heating with PLC intelligent control system.Machine can be customized as customer requirement.
About Us:
Wenzhou Chaoxu Machinery Co.,ltd was specialized in Intelligent Luggage Machinery Industry since 1992.We has become a leader brand after two decades' development and management. Our main products are Plastic Sheet Extrusion Machine, Vacuum Forming Machine, Cutting Machine, Punching Machine and so on. Has developed Meltblown Machine with government in 2020.Having a group of senior technical personnel, researching and achieving lots of national technical patents(such as Cursorpositioning device in cutting component, Mold distributor device and Water film temperature machine device for Extrusion Machine, Lifting frame device and Drying oven device for Vacuum Forming Machine ) . We processed CE, ISO9001:2015 certificates and owned the whole running system. Cooperating with global famous luggage manufacturers such as Samsonite, Crown and also we have further relationship with our suppliers ABB, Schneider, Siemens, Taiwan Weinview, Japan ORMON and so on. Our machines gain good reputation that they are widely sold to Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions.
Exhibition:
Packing&Shipping:
Certificate:
FAQ: Q1:Are you a factory or a trading company?
A1:We are the manufacturer & trading company,established in 1992.
Q2:Where is yourfactory? How can I get there?
A2:Our factory is located in Pingyang County, Wenzhou City, Zhejiang Province, China.
Q3:What's your main market?
A3:Our machine is sold well in 30 provinces and cities in China and enjoy high reputation in China. At the same
time,the machine Has been widely exported to more than 20 countries ,such as Turkey, Morocco, India, Bangladesh, Algeria, Egypt, Tunisia, South Africa, Vietnam, Cambodia, Thailand, Germany, Indonesia,Lebanon,Pakistan,Brazil,Russia,etc.
Q4:How is your factory doing in quality control?
A4:Quality is the most important principle.All machines will be tested at least twice beforeshipment, first testing by our factory ,second testing by customer directly.So our customers always know well of how to use our machine before the machine arrived their factory. And we will offer whole-life service also.Strictly test the machine before delivery, and arrange delivery after 100% confirmation that the machine has no problem. All machinery has been passed ISO and CE testing.
Q5:How about after sales service?
A5:During the special period ,we will offer all support online via video 24h per day.Before
shipment ,we will test machine from A to Z.Then we will send all videos from installation to production for customers.Full set of manual and instruction in English will be send with machine together.And if customer need engineer come to offer support in their factory ,the cost and visa should be paid and prepared by customers.

---
