High Precision Five Axis Center High Precision 5 Axis CNC Machine Vertical Milling Capability Cutting Lathe Combo Center Combo Machining

Product Description

Product Description

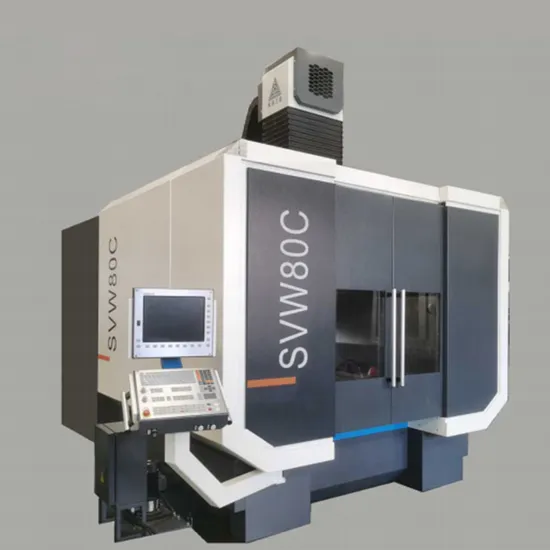

SVW series - Cradle-type vertical five-axis linkage machining center
SVW series is a five-axis linkage vertical machining center machine tool. It is equipped with imported functional parts such as cradle-type rotary worktable with A and C axes, high-speed motorized spindle, etc., which can realize one-time clamping of the workpiece and full-process processing. Higher fast moving speed can greatly shorten the non-processing time and improve the processing efficiency.
Rich processing experience and cutting-edge technology
Application Case
SVW series CNC machine tools are applied to automobile shell, mold, medical (joint), aerospace, wind turbine blades.
Detailed Photos
Product Parameters

	Machine Specifications(Unit)		SVW60C	SVW60C-F	SVW80A	SVW80C
Workbench	Diameter of Workbench	mm	ø 450	ø 450	ø 800	ø 800
	The Maximum Diameter of Workpiece	mm	ø 640	ø 640	ø 980	ø 980
	The Maximum Weight of Workpiece	kg	500	500	850	850
Spindle	Speed	rpm	18000	10000	12000	12000
	Power	KW	27/33	10/12	28/36	28/36
	Torque	Nm	65/81	60/80	108/139	108/139
	The Size of Taper	-	HSK63A	HSK63T	SK40	SK40
Feed	Fast Speed of X/Y/Z Axis	m/min	60/48/48	60/48/48	60/48/48	48
	Feeding Speed of X/Y/Z Axis	mm/min	20~10000	20~10000	20~10000	20~10000
	Rotating Speed of A Axis	rpm	90	90	50	30
	Rotating Speed of C Axis	rpm	100	1000	80	80
Route	Route of X/Y/Z Axis	mm	460/600/400	460/600/400	800/800/600	800/800/600
	The Rotation Range of the A axis	degree	±125	±125	±120	±120
	The Rotation Range of the C axis	degree	n×360	n×360	n×360	n×360
Accuracy	Positioning Accuracy of X/Y/Z axis	µm	8	8	8	8
	Repeat Positioning Accuracy of X/Y/Z axis	µm	5	5	5	5
	Positioning Accuracy of B/C axis	second	8	8	8	8
	Repeat Positioning Accuracy of B/C axis	second	5	5	5	5
Tool Magazine	Capacity	A handle of	30	40	30	30
	The Maximum Length of Cutting Tool	mm	300	300	350	350
	The Maximum Diameter of Cutting Tool (Full Knife)	mm	ø 80	ø 80	ø 95	ø 95
	The Maximum Diameter of Cutting Tool (Adjacent with Empty Knife)	mm	ø 150	ø 150	ø 150	ø 150
	The Maximum Weight of Cutting Tool	kg	6	6	10	10
Something Else	Numerical Control System		Haidenhain Doctor iTNC530(Siemens 840Dsl)
	Weight of Machine Tool	T	10	10	18	16

Company Profile
Dalian Heshe Trading Co., Ltd. is located in the Bohai Economic Belt, the economic center in the south of Northeast China, and the comprehensive industrial base of Dalian. It specializes in the sales and technical services of metal cutting tools and tool systems. We always regard improving the production efficiency, product quality and cost reduction of customers as the first priority. We analyze and understand the production process of customers, and provide customers with technical solutions and high-quality tool products suitable for various needs.
We always adhere to the purpose of "sincere cooperation, integrity first, sharing and sharing", and adhere to the service attitude of "professional, dedicated, efficient", and sincerely invite customers to reach a win-win situation with us.
