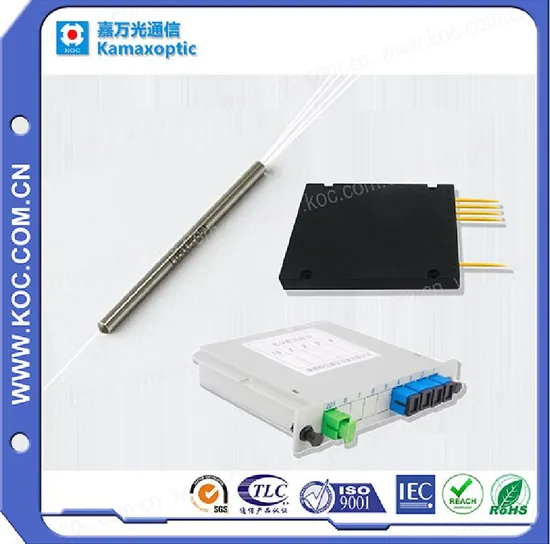

Singlemode Fusion Tree 1X4 Fbt Optical Fiber Splitter

US$10.00

1-9 Pieces

US$9.50

10-49 Pieces

US$9.00

50+ Pieces

Basic Info.

Model NO.

111821-725

Output

1X4 Fibers

Excess Loss (Typ.) (dB)

0.3/0.5

Directivity (dB)

Fiber Type

Corning Singlemode SMF-28e, Ds Fiber, or Custom Fi

Fiber Connector

Sc/FC/St

Application

Communication

Connection Structure

Sc, LC, FC, St, MPO

Material Shape

Round Wire

Allowed Lateral Pressure

100n/100

Allowed Tensile Strength

<100n

Core

Multicore

Brand

Koc

Sheath Material

SUS, ABS

Transport Package

Carton

Specification

CE, IEC, GR1209, REACH, ROHS

Trademark

KOC

Origin

Guangdongshenzhen

HS Code

85367000

Production Capacity

10000

Product Description

We use fused biconical taper technique to build a series of couplers. According to the different operating band- widths, we have wide band couplers,dual window couplers, three-window couplers,and so on.
APPLICATIONS
Telecommunication systems
Digital, hybrid and AM-Video system
CATV systems
Fiber sensors
FEATURES
Low excess loss
Single fusion design
Uniform power splitting
Compact size

Type	Single Fused
Grade	P	A
Port Configuration	1 x 4	1 x 4
Excess Loss (Typ.) (dB)	0.30	0.50
Insertion Loss (Max.) (dB)	6.8	7.6
Uniformity (Max.) (dB)	1.0	1.6
Polarization Sensitivity (dB)	0.12	0.15
Operating Wavelength (nm)	980,1310, 1480, 1550, 1585 + 10nm or custom wavelength
Directivity (dB)	50
Operating Temperature (° C)	-40 - +85
Fiber Type	Corning Singlemode SMF-28E, DS Fiber, or custom fiber
Fiber Pigtail Length (m)	1
Package Dimension (mm)	3X54mm or 3X60mm

Ordering Information

Type?	Grade	Wavelength	Coupling Ratio or Attenuation (dB)	Port	Package	Pigtail Style	Fiber Type	In/Out Connector
S	S	83=830nm	AV =Tree Coupler	0103=1x3	A=Package A	1=Bare Fiber	0=SMF-28	0=None
W	P	85=850nm		0104=1x4	B=Package B	2=900µm Jacket	1=Corning Flexcore	1=FC/APC
	A	98=980nm		0303=3x3		3=3mm Cable	D=DS Fiber	2=FC/PC
		13=1310nm					S=Special	3=SC/APC
		14=1480nm						4=SC/PC
		15=1550nm						5=ST
		16=1585nm						6=LC
