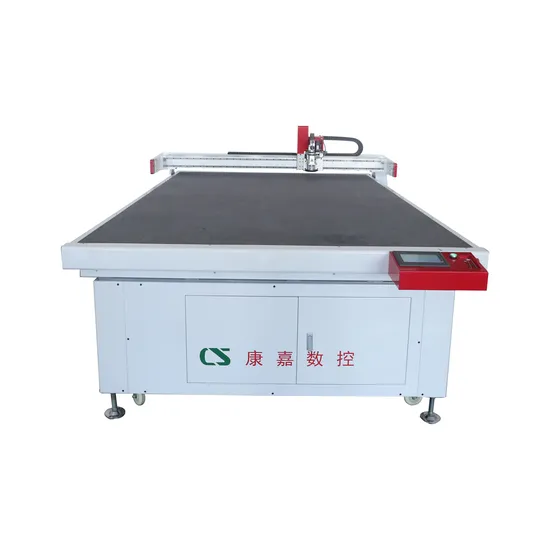

High Quality EVA EPS CE Foam Sponge Rubber CNC Machine

Product Description

Product Description High Quality EVA EPS CE Foam Sponge Rubber CNC Machine
Features:
CNC Oscillating Knife leather, fabric, rubber, sponge, foam Cutting Machine
1. Adopt imported PMI rack & square linear guide, Panasonic servo motor & drive ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Kangjia digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;
7. Multi-functional cutting heads can meet different industries' requirements.
Product Parameters

Model	1625/1630/1830/2030/2125, can be customized.
Working area	1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm/2000*2500mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Oblique knife (V-cut)
	Marking pen
	Punching roller (round punching/v-punching/optional)
	Milling knife
	Drag knife
	Pneumatic knife
	Projector and camera optional
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	110V/220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Cutting Samples show
Products Advantage
1. Fast cutting & high precision, saving labour and material cost, improve your production capacity!
2. Easy operation: everyone can operate and cut without lots of skills.
3. Protect the environmental, no smoke & odor when cutting.
4. Applied to many industries: clothes/garment/apparel, sofa, bags, shoe-making, packaging, advertising, home supplies, DIY etc.
5. Running in a high automaton.
6. Consistent accuracy even with complicated patterns.
7. Reduces your lead times of pattern cutting from your clients.
8. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
9. Special design: less moving structure guarantee low down time and easy in installation and maintain.
10. CNC control, easy conversion
Packaging & Shipping Wooden package suitable for long sea freight with film protection to get rid of humidity.
After Sales Service A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments all sorts of tools and testing facility, we will also provide accomadation during training period. Training Time: 1-10 working days. FAQ Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.
Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.

---
