Continuous Tumble Dryer Machine for Terry Towel

Product Description

CONTINUOUS TUMBLE DRYER
Features:
1. The upper and lower blower speed, exhaust blower speed, entry and exit speed, temperature and fabric duration time inside the chamber, all
are adjustable according to different textile material and process requirement
2. Loading capacity in chamber and hitting times can be setted by means of fabric weight and timing
3. All parameter including air flow, exhaust flow, machine speed, capacity can be set and monitored on color touch screen controller
4. Automatic cleaning device for machine continuous running without machine stoppage
5. Fabric movement is driven by air flow, low tension treatment
6. Perfect hand feel with continous beating the ss fence.
7. Suitable for improve fabric handle feel
8. Improve the softness, bulkiness
9. With mechanical beatting, fabric back to natural soft
10. Monoblock design, with special designed air tube, fabric can be driven by air and beating the fence repeatly, which helps to achieve
a ideal and softness finishing result.
Specification:

Model	AIR-X
Machine width	2000mm-3600mm
Working width	1800mm-3400mm
Speed	3-50m/min
Heating system	Natural Gas, Thermal Oil, Steam
Application	Knitted, Woven, Upholestery, Terry products, Fleece etc
Temperature	Gas: 170ºC; Thermal Oil/ Steam: 150ºC

Machine Flow Chart:
Entry → J BOX → Venturi Tube → J BOX → Fabric Exit

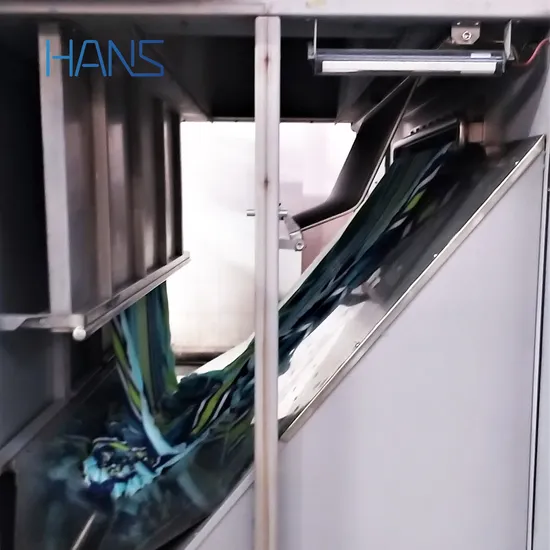

Tumbling Process:

---
