CF- 4/6 Inch Silicone Rubber Open Mill for Lab High Precision Mixing Mill Machine with Electric Heating / Water Cooling

Product Description

CF Open Mill -- 4inch / 6inch / 9inch / 12inch / 14inch

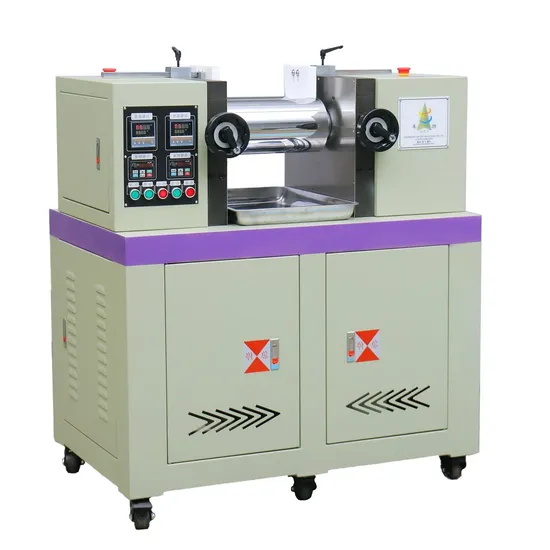

This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastics, pigment masterbatch, silicone rubber and other polymers; The double rollers are mirror-chromed with electric heating and water cooling, the surface temperature of the roller is uniform. The space between the two rollers is adjustable; Multi-directional Safety protection device make it safe and reliable, durable.

Model	CF-120 4inch	CF-160 6inch	CF-200 9inch	CF-300 12inch	CF-360 14inch
Power (KW)	3.7	5.5	7.5	30	37
Roller specification (mm)	120*320	160*350	210*600	300*700	360*900
Front roll line speed (r/min)	7.5	10	16.96	16.3	16.22
Maximum roll distance (mm)	0-5	0-5	0-10	0-10	10
Speed ratio (adjustable)	1:1.24	1:1.24	1:1.29	1:1.29	1:1.29
Overall weight (kg)	800	1000	1200	2500	6500
Length (mm)	1000	1100	1500	2745	3700
Width (mm)	560	550	1600	1275	1425
Height (mm)	1150	1200	2400	1657	1870

CF Open Mill -- 16inch / 18inch / 22inch / 24inch / 26inch
1. Mainly used for: natural rubber, synthetic rubber, silicone, EPDM, fluororubber, EVA, PVC, TPE and other materials for molding, tablet production and other processes.
2. Bearing seat: Made of high-quality steel precision casting and processed with high-precision CNC, it has strong load-bearing capacity and good seismic resistance.
3. Bearing lubrication: Adopting a forced circulation lubricating oil system toreduce manual maintenance.
4. Base: Made of high-quality steel plates welded together, with anintegrated structure and good seismic resistance.
5. Roller pitch adjustment: can be customized according to customerrequirements, electric adjustment or oil pressure adjustment.
6. Rubber flipping: Can be customized according to customer. requirements, with an automatic glue flipping system to reduce manual labor intensity.
7. Operation: The equipment is easy to operate and easy to maintain.
8. Safety: Install emergency stop buttons in front and back for quick shutdown.

Model	CF-400 16inch	CF-450 18inch	CF-550 22inch	CF-560 24inch	CF-660 26inch
Power (KW)	45	55	90	110	250
Roller specification (mm)	400*1010	450*1200	550*1530	610*1830	660*2130
Front roll line speed (r/min)	18.78	21.1	23.4	25.8	29.8
Maximum roll distance (mm)	10	12	15	15	15
Speed ratio (adjustable)	1:1.27	1:1.27	1:1.29	1:1.29	1:1.29
Overall weight (kg)	8000	10000	22000	22500	32000
Length (mm)	4000	4550	5630	6100	6240
Width (mm)	1500	1660	1946	2050	3350
Height (mm)	1870	2015	2200	2200	2670

Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic,rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people.
We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long term and stable relationships of cooperation.
Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!

---
