Product Description
Product Description

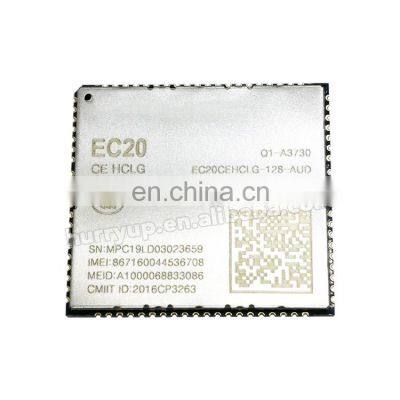

DescriptionEC20 LTE Cat.3 ModuleEC20 series is a new generation of LTE module. Adopting the 3GPP Rel. 9 LTE technology, it delivers 100Mbps downlink and 50Mbps uplink data rates and is fallback compatible with UMTS/HSPA+ UC20 module in the compact and unified form factor, providing a flexible and scalable platform for migrating from UMTS/HSPA+ to LTE. EC20 contains four variants: EC20-A, EC20-C, EC20-CE and EC20-E. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.EC20 supports multiple-input multiple-output (MIMO) technology, a cutting edge antenna technology capable of transmitting multiple data streams on multiple transmitters to multiple receivers. The antennas at each end of the communications circuit are combined to minimize errors and optimize data speed. The module also combines high-speed wireless connectivity with embedded multi-constellation high-sensitivity GPS+GLONASS receiver for positioning.A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as CPE, router, data card, rugged tablet, automobile, security and industrial PDA.Key Benefits:● Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage● Compact SMT form factor ideal for small end products with tight space and extended operating temperature range● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems● GNSS receiver available for applications requiring fast and accurate fixes in any environment● Simple migration from 3G to 4G with a flexible and scalable platform EC20 Technical Specifications: Variant for EMEA/Korea/Thailand- EC20-E:> LTE FDD: B1/B3/B5/B7/B8/B20> WCDMA: B1/B5/B8> GSM: 850/900/1800/1900MHz Variant for North America- EC20-A:> LTE FDD: B2/B4/B5/B12/B17> WCDMA: B2/B4/B5> GSM: 850/1900MHz Variant for China- EC20-C:> LTE FDD: B1/B3/B8> LTE TDD: B38/B39/B40/B41> TD-SCDMA B34/B39> WCDMA: B1/B8> GSM: 900/1800MHz* Variant for China/India- EC20-CE:> LTE FDD: B1/B3> LTE TDD: B38/B39/B40/B41> TD-SCDMA: B34/B39> WCDMA: B1> CDMA 1x/EVDO: BC0> GSM: 900/1800MHz Data Rates:- LTE FDD: Max 100Mbps (DL)/Max 50Mbps (UL)- LTE TDD: Max 61Mbps (DL)/Max 18Mbps (UL)- DC-HSPA+: Max 42Mbps (DL)/Max 5.76Mbps (UL)- UMTS: Max 384Kbps (DL)/Max 384Kbps (UL)- TD-SCDMA: Max 4.2Mbps (DL)/Max 2.2Mbps (UL)- EVDO: Max 14.7Mbps (DL)/Max 5.4Mbps (UL)- EDGE: Max 236.8Kbps (DL)/Max 236.8Kbps (UL)- GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL) Voice- Speech Codec Modes: HR/FR/EFR/AMR/AMR-WB- Echo Arithmetic: Echo Cancellation/Noise Reduction Interfaces- USB 2.0 with High Speed up to 480Mbps- Digital Audio through PCM (Optional)- 1.8V/3.0V (U)SIM Card Interface- NETLIGHT × 2 (NET_STATUS and NET_MODE)- UART × 1- RESET- PWRKEY- Solder Pads for Primary, Rx-diversity and GNSS- Antennas- ADC × 2- SDIO × 1 (for Wi-Fi) Enhanced Features:- SDIO Interface for Wi-Fi Function (Optional)- eCall*- DTMF- DFOTA: Delta Firmware Upgrade over the Air- Audio Playback/Audio Recording- QuecLocator- (U)SIM Card Detection- GNSS: GPS/GLONASS- Antenna: DL MIMO 2 × 2, Support Rx-diversity- Firmware Update via USB Software Features- USB Driver:> Windows XP, Windows Vista,> Windows 7/8/8.1/10, Windows CE 5.0/6.0/7.0*,> Linux 2.6/3.x/4.1, Android 4.x/5.x/6.0- RIL Driver: Android 4.x/5.x/6.0- NDIS Driver: Windows 7/8/8.1/10- ECM Driver: Linux 2.6/3.x/4.1- Gobinet Driver: Linux 2.6/3.x/4.1- Linux qmi wwan Driver: 3.x (3.4 and later)/4.1- Protocols: TCP/UDP/PPP/FTP/FTPS/NDIS/HTTP/HTTPS/SMTP/SMTPS/MMS*/NTP/PING/DTMF/FILE/NITZ/CMUX/QMI General Features- 3GPP E-UTRA Release 9- Bandwidth: 1.4/3/5/10/15/20MHz- Temperature Range: -40°C ~ +85°C- Dimensions: 32.0mm x 29.0mm x 2.4mm- LCC Package- Approx. 4.6g- Supply Voltage: 3.3V~4.3V, 3.8V Typ.- 3GPP TS27.007 and Enhanced AT Commands Approvals- RoHS Compliant- CE/GCF (Europe)- DoC (Russia)- FCC (North America)- CCC/SRRC/NAL (China)- KC/SKT/KT* (Korea)- NCC (Taiwan)- ICASA (South Africa)- Anatel (Brazil)Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
