Cylinder Block Grinding Milling Machine 3m9740b for Engine Rebuild

Product Description

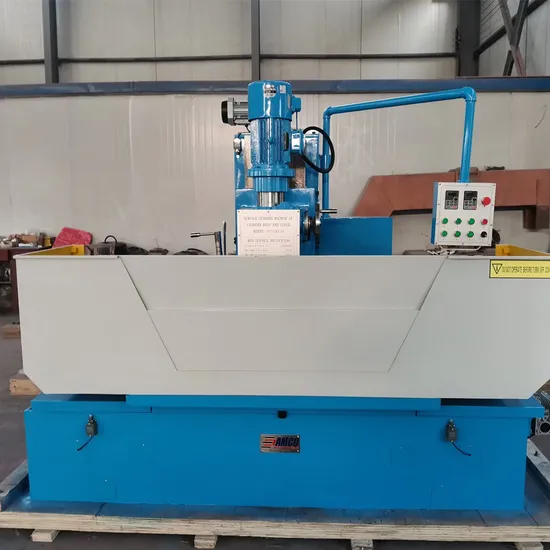

Cylinder Block Surface Grinding Machine
Product Description
1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw,
Stepless speed frequency control, convenient and stable adjustment.
3. Coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.

Model	3M9735B×130	3M9735B×150
Working table size	1300 x500mm	1500x500mm
Max working length	1300 mm	1500 mm
Max. width of grinding	350 mm	350 mm
Max height of grinding	800 mm	800 mm
The vertical moving distance of grinding head	60 mm	60 mm
The vertical moving distance of spindle box	800 mm	800 mm
Spindle speed	1400/700 r/min	1400/700 r/min
Transverse moving speed of working table	40-900 mm/min	40-900 mm/min
Overall dimensions(L×W×H)	2800×1050×1700 mm	3050×1050×1700 mm
Packing dimensions(L×W×H)	3100×1200×1850 mm	3350×1200×1850 mm
N.W. / G.W.	2800 / 3100 kg	3000 / 3300 kg

---
