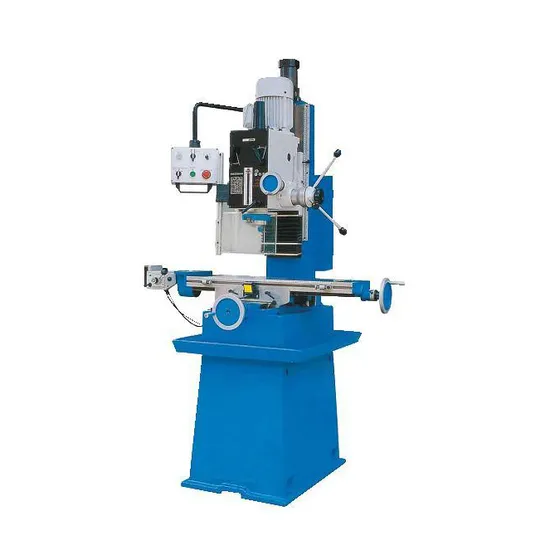

Drilling and Milling Machine (DM7045)

Product Description

Feature:
Milling, drilling, tapping, boring, reaming
Wide and big table
Milling head up&down by power
Worktable power feed
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position strong rigidity, strong cutting power
Ceelectric box
Specification

Item Parameter Max.drilling capacity(iron/steel) 31.5/45mm Max.mill capacity(face/end) 80/32mm Spindle taper MT3/MT4/R8/ISO30 Worktable size 800×240mm Worktable travelX/Y 570/230mm Head tilt left right 90° Spindle travel 130mm Spindle nose to worktable 470mm Spindle center to column surface 285mm Spindle speeds range(2 steps) 12steps:75-3200r/min motor 0.85/1.1kw N.W/G.W 300/350KG Packing size(L×W×H) 1140×960×2240mm 20'Container 12 sets

Standard Accessories Optional Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun Cooling system, Working light, Spindle power down feeder, DRO, depth indicator, spring collet, vices, milling collet ,milling clamp. Foot stand:

---
