Heavy-Duty Double Deep Reach Scissors Forklift for Efficient Lifting

Product Description

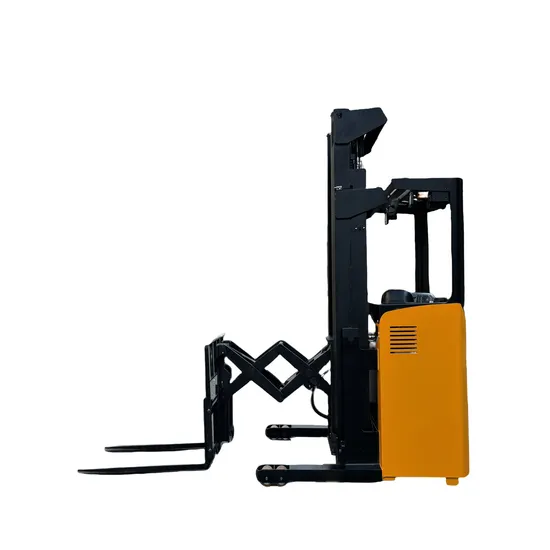

Product DescriptionThe electric reach double-deep scissor forklift is an innovative material handling solution that combines the features of a reach truck with a scissor fork mechanism. Designed for efficient operations in double-deep racking systems, its dual-deep reach capability allows it to access the second pallet position without moving the truck. This design maximizes warehouse space utilization and improves operational efficiency.

Models		CQD16J
Drive mode		Electric
Driving Models		Seated-on type
Rated load	Q(kg)	1600
Center distance of load	C(mm)	500
Front suspension	x(mm)	280
Wheelbase	y(mm)	1670
Vehicle weight (including batteries)	kg	4150
No-load axle load, drive side/load-bearing side	kg	2630/1520
Full axle load, fork forward, drive side/bearing side	kg	1200/4550
Full axle load, fork recovery, drive side/bearing side	kg	2405/3345
Type of tire		Polyurethane
Tire size, bearing side	mm	φ130x85
Tire dimensions, drive side	mm	φ343x135
Tire dimensions, drive side	mm	φ100x50
Number of wheels, front/rear (x = drive wheels)		4/1X-2
Track Width, Drive Side	mm	960
Track Width, Load Bearing Side	mm	1407
The fork tilts forward/backward	°	3/5.
Mast closed height	h1(mm)	2980
Free rise height	h2(mm)	2050
Elevation	h3(mm)	6000
The maximum height of the mast when lifting (including the shelf)	h4(mm)	6970
Height of roof support frame	h6(mm)	2190
Height of station board	h7(mm)	316
Height of the outrigger from the ground	h8(mm)	130
Vehicle length	L1(mm)	2705
Vehicle width	b1/b2	1270/1520
Fork size	l/e/s	1070/122/40
Rack width (add bolt)	b3(mm)	850
Outside distance of forks	b5(mm)	266-720
Inner distance of outrigger leg	b4(mm)	1280
Forward distance	L4(mm)	1020
Ground clearance of mast	mm	130
Vehicle ground clearance	m(mm)	50
Stack channel width (pallet 1200x1000)1200 cross-fork direction	Ast(mm)	3085
Stack channel width (pallet 1200x800)1200 along fork direction	Ast(mm)	3150
Turn radius	Wa(mm)	1950
Speed, full/empty	km/h	7.8/8
Lifting speed, full/no load	mm/s	140/280
Rate of descent, full/no load	mm/s	300/150
Maximum climbing capacity, full/no load (S2-5MIN)	%	6
Braking mode	Electromagnetic brake
Drive Motor Power (S2-60MIN)	kw	6.5(AC)
Lift motor power	kw	8.6
Battery, voltage/rated capacity	V/Ah	48/400
Weight of battery	kg	655
Steering mode	Electronic steering
Battery replacement method	Side pull

PRODUCT FEATURESHigh Lifting Capacity with Stable Operations
Equipped with a high lifting height, it is suitable for multi-level racking operations. The scissor mechanism ensures fork stability, maintaining balanced loads during elevated stacking to enhance safety.
Eco-Friendly and Fully Electric Operation
Powered by efficient lithium or lead-acid batteries, it offers low energy consumption, zero emissions, and low noise, making it ideal for modern green warehousing and industrial environments. Smart Controls and Multiple Safety Features
Advanced safety systems include automatic speed limits, fork position correction, and overload protection. These features enhance precision handling and ensure the safety of both operators and goods. Flexible Maneuverability for Complex Environments
Electric drive technology makes the stacker emission-free, meeting environmental standards. Its low noise levels make it suitable for environments with strict noise control requirements.Main ProductsOur product line currently encompasses nine major series more than 100 varieties, including fully electric pallet stackers, fully electric pallet trucks, fully electric reach trucks (stand-up and sit-down types), electric tow tractors, electric order pickers, narrow aisle forklifts, specialized forklifts, AGVs, and unmanned aisle stackers. We offer material handling solutions ranging from 500KG to 100,000KG, achieving both product diversification and large-scale production.Company ProfileAnhui Younglift Intelligent Equipment Co., Ltd., established in 2005, is a High-tech enterprise specializing in the research, design, manufacturing, and providing material handling solutions for the logistics and transportation industry. Recognized as a "specializing Innovative" and "Technological Innovation" enterprise, we are committed to excellence in our field.
NON-STANDARD CUSTOMIZATION, AVAILABLE SOLUTIONS
With the design concept of "safety, durability and comfort", we provide "non-standard customized" material handling equipment.
The products involve more than 100 varieties in 9 series, including all-electric pallet stacker, all-electric pallet truck, all-electric forward forklift (standing and seat type), electric traction trailer, electric lift pickup truck and narrow lane forklift, special forklift, AGV and unmanned lane stacker. , to provide customers with 500kg-100000kg material handling solutions.
Certifications
Up to now, the company has obtained the specialized Equipment Production License of the People's Republic of China, ISO E1/S1/Q1 certification, production standardization certificates, and the High-Tech Enterprise Certificate.
Additionally, we have been recognized with awards such as "Lu'an High-Quality Products," "Anhui Province Trademark Brand Demonstration Enterprise," "Anhui Province Innovative Enterprise," and the "Anhui Province specialized and Innovative Enterprise Certificate."Exhibition & Customers
Currently, our sales and service network covers all regions across China, and our products are exported to more than 40 countries, such as North America, the United States, Mexico, Canada, South America, Brazil, Chile, European countries, Russia, the United Kingdom, Germany, Italy, South Korea , Australia, Singapore, South Africa, and so on.Our Partners
Packaging & Shipping
FAQQ1:How to proceed an order for product ?
A1:Firstly,let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly you confirm the samples and place payment for formal order.
Fourthly,We arrange the production and shipping.
Q2:When can I get the quotation?
A2:We usually quote you within 12 hours after we get your inquiry.If you are very urgent to get the quotation.Please callus or tell us in your mail,so that we could regard your inquiry priority.
Q3:Can I have a sample order for product ?
A3:Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q4:What about the fee for sample to send by express?
A4:Please advise your address and we will quote the shipping cost.The shipping cost will return to you after the order be placed.
Q5:Do you have any MOQ limit for product order ?
A5:No quantity limitation,any quantity products you can get.
Q6:Can you do OEM for me?
A6:We accept all OEM orders,just contact us and give us your design.We will offer you a reasonable price and make samples for you as soon as possible.

---
