Ring Spinning Line Textile Machinery Lap Drawing Machine Linked with Combing Machine

Product Description

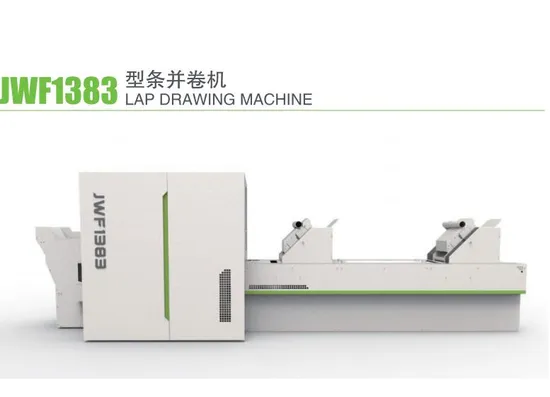

JINGWEI Brand model JWF1383 Lap Drawing Machine linked with combing machine in ring spinning textile line
24h Online Customer Service

Product Description
JWF1383 Lap Drawing Machne, being preparation device of cotton combing, makes slivers drafted, combined and winded, improve thestralghtness and parallelization of fiber for further processing of comber. After years of continuous improvement, JWF138?has advanced technology, reliable structure and superior cost performance.
Details Showing
The adopting variable-frequency motor is step-less speed regulating.
Lap winding adopts roller pressure winding technology, simple structure makes stable andreliable.
The two-over-three curve drafting system is driven by synchronous belt and pneumaticpressure.
The height of bobbin storage is reduced, which is convenient for the operator and reduces thelabor intensity.
It is intelligent design and can automatically run. It can realize the unmanned production ofcombing process by Jingwei full-automatic combing production system.
JWF1383 FOUNDATION PLAN
JWF1383 ELECTRONIC SHOWING
Product Parameters

NO.of Feeding Head	2
Sliver Doubling No.(picks)	24-28
(mm)Max Dia. of lap	620
(mm) Lap Width	300
(g/m) Feed Sliver Weight	3.5-5.5
(g/m) Batt WWeight max.	80
(m/min) Lap Speed	135
Draft	2-Over-3 Curve Drafting

(mmm)Can Size	600X1200,1000X1200(Optional)
(mm)Tube Dimension	200X300
(kg/b)Theoretical Production	350
(m/h)Air Capacity	3000
(Pa)Negative pressure of Dust Suction	1000
(Nm/h)Air Consumption	15
Pressure(Pa)	0.7~0.8x10°pa
Installed Power(kW)	12

Company Profile
Qingdao Hongda Textile Machinery Co., Ltd (here after referred to as QDHD)is the subsidiary company ofJingwei Textile Machinery Co. Ltd. It is a large-scale backbone enterprise of textile machinery manufacture,as well as an important manufacturing base for carding machinery and auto-winder.
The Technology Center of QDHD is certified as the National Technology Center. Blowing-Cardingmachinery wins the First-Class Scientific and Technological Progress Award issued by China Textile IndustryAssociation and is the promotion program in The Ninth Five-Year Plan of the State Science and TechnologyCommission. The three leading products of QDHD-Carding Machine, Blowing-Carding Machine and Auto-winder, have all passed the ISO9001 quality system authentication, winning QDHD the honor of "PioneerEnterprise of National Quality Control".
Facing the new situation, Qingdao Hongda Textile Machinery Co. Ltd will be committed to continuouscontribution to the development of Chinese textile machinery, the technological progress of the Chinesetextile industry and the improvement of its international competitiveness by executing new initiatives andadvancing with times.

---
