US$6,250.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
GS, CE, RoHS, ISO 9001
Transport Package
Wooden Packing
Specification
1360*1240*1000
Packaging & Delivery
Package Size
136.00cm * 124.00cm * 100.00cm
Package Gross Weight
950.000kg
Product Description

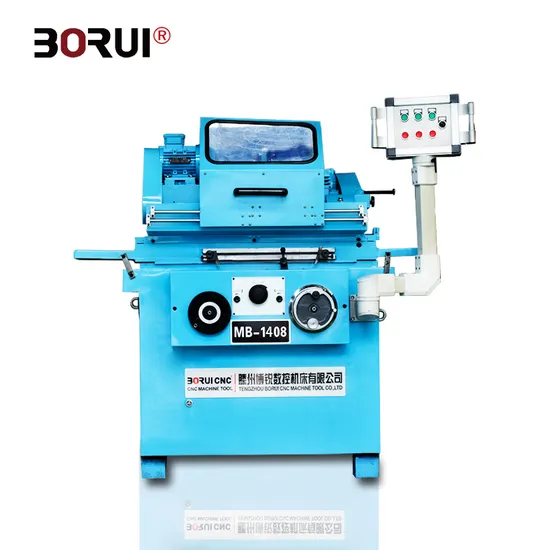

Small Cylindrical Grinding Machine M1408 Universal Grinding Machine Product Description
Feature :
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface2, tooling way available top, three jaw chuck, and special fixture of spring clip;3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewingmachines, machinery and other industries processing small parts,4, suitable for tools, machine shop and workshop for medium and small batch production,5, the machine according to the top is divided into 300 mm.
Product Parameters
Model
| Unit
| M1308x300
| M1408x300
|
Grinding Dia. (O.D)
| mm
| 2-80
| 2-80/10-60
|
Grinding length (O.D)
| mm
| 300
| 300/125
|
Center height
| mm
| 115
| 115
|
Max.workpiece weight
| kg
| 10
| 10
|
Worktable speed
| m/min
| 0.1-4
| 0.1-4
|
Wheel peripheral velocity
| m/s
| 35
| 35
|
Max.travel of worktable
| mm
| 340
| 340
|
Swivel range of worktable
| degree
| -3~ +7
| -3~ +7
|
External grinding wheel size
| mm
| Max.250*25*75, Min.180*25*75
| Max.250*25*75, Min.180*25*75
|
Headstock taper
| morse
| No.3
| No.3
|
Tailstock taper
| morse
| No.3
| No.3
|
Machine motor power
| kw
| 2.34
| 2.34
|
Overall dimension
| mm
| 1360*1240*1000
| 1360*1240*1000
|
Machine weight
| kg
| 1500
| 1500
|
Roundness (O.D/I.D)
| μm
| 1.5/2.5
| 1.5/2.5
|
Uniformity of dia. In longitudinal section
| μm
| 5/8
| 5/8
|
Surface roughness (O.D/I.D)
| μm
| Ra.0.25/0.63
| Ra.0.25/0.63
|
Detailed Photos
