Tip Quality 1lyq-722 7 Discs Rotary Driven Disc Plough for 50-65HP Tractor

US$1,270.00
2-9 sets
US$1,170.00
10+ sets

Basic Info.

Model NO.
1LYQ-722
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE, ISO
Color
Red, Blue,Green, Other Colors
Warranty
1 Year
Transport Package
Iron Shellframe Box
Specification
See Specification list
Trademark
CYC
Origin
China
HS Code
8432100000
Production Capacity
5000 Sets / Month

Product Description

Tip quality 1LYQ-722 7 discs Rotary driven Disc plough for 50-65HP Tractor
1LYQ series Disc Plough, also named Rotary-driven Disc plough, Drive plough,One-way Disc plough, Heavy duty plough, Plow,
Farm plough, Agriculture Plough, Tractor Plough
Main Features:
1LYQ driven disc plow is mounted on a tractor through a rear mounted three-point linkage. During the working process of the implement,
the motive power is transferred to the gear case of the disc plow through a back power takeoff shaft (PTO) of the tractor to drive the discs
of the disc plow to rotate. The driven disc plow, which is mainly suitable for paddy field plowing, has the advantages of no weed winding,
high operational quality and high working efficiency.
Main Specification and Technical parameters :
Model 1LYQ-322 1LYQ-422 1LYQ -522 1LYQ-622 1LYQ -722 1LYQ-822 1LYQ-922
Overall dimension (mm) L 855 965 1075 1210 1325 1440 1555
W 1145 1365 1585 1805 2025 2245 2465
H 1050 1050 1050 1050 1050 1050 1050
Working width (mm) 660 880 1100 1320 1540 1760 1980
Disc diameter (mm) 500 500 500 560 560 560 560
Disc thickness (mm) 4 4 4 4 4 4 4
Disc no. 3 4 5 6 7 8 9
Working depth (mm) 120~240
Input shaft rotating speed (rpm) 540~720
Cutter shaft rotating speed (rpm) 90~120
Matched power (hp) 12-20 18~28 25~30 30~50 50~60 60~70 70-90
Weight (kg) 216 240 276 321 357 400 430
Linkage Standard Three-point Suspension

1LYQ series Disc Plough main Features and Specification :
High quality Disc plough have ISO,CE, PVOC COC, CO etc certificates:

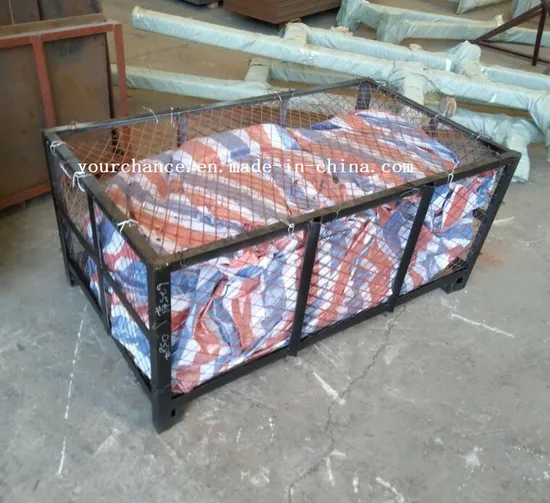

Disc Plough by Iron crate box Packing :
Best price will be quoted for you as soon as receive your Requirement !
