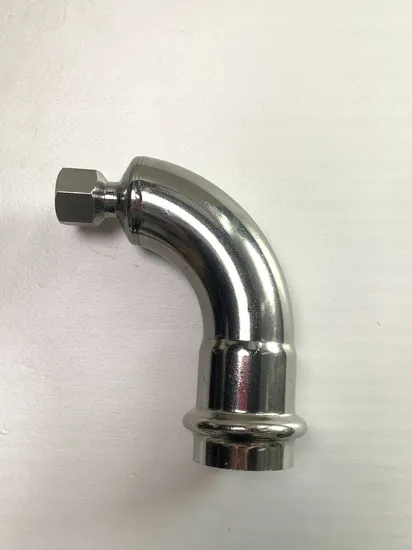

Double Clamp Type Tube Fittings with 90 Degree Inside Thread Elbow

Product Description

Product Description

Grade	C ≤	Si ≤	Mn ≤	P ≤	S ≤	Ni ≤	Cr ≤
304	0.08	0.75	2.00	0.045	0.03	8.00-11.00	18.00-20.00
304L	0.035	0.75	2.00	0.045	0.03	8.00-13.00	18.00-20.00
316	0.08	1.00	2.00	0.045	0.03	10.00-14.00	16.00-18.00
316L	0.035	0.75	2.00	0.045	0.03	10.00-15.00	16.00-18.00
321	0.04-0.10	0.75	2.00	0.045	0.03	9.00-13.00	17.00-20.00

Product Name	Stainless Steel Fitting
Shape	Union, Tee, 90° Elbow, 45° Elbow, Bushing, Cap, Coupling, Cross, Nipple, Plug
Color	Silver
Head Code	Hexagonal / Round
Body Material	Stainless Steel
Thread Type	UNF / UNC / NPT / BSPT / BSPP /RP / SAE
Technics	Forged
Certificate	ISO
Sample	Free Sample
Customized Support	OEM, ODM

Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116 Pipe standard: GB/T 19228.22003, BS EN 10312 and JIS G3448 Sealing ring standard: GBT 19228.3-2003, EN681-1:1998 Material: Stainless steel 304/304L and 316/316L available. -- Max working pressure 1.6MPa (equal to 232 psi), Testing water pressure:2.5MPa for JIS sizes (equal to 362.5psi),and 5MPa for EN10312 sizes. - Working temperature from -20 ºCto +110 ºC (with Chlorinated buty rubber O-ring). - Suit medium:cold water, hot water, compressed air, gas, oil etc. Application: 1. Cold and hot water supply 2. Heating supply 3. Fire protection 4. Medicinal gas 5. Industrial petroleum pipeline system other products: Elbow 90 degree A type/Elbow 90 degree B type Elbow 45 degree A type/Elbow 45 degree B type Tee/Reducer/Coupling/Flange/Cross Coupling Union/Coupling Male/Coupling Female Cap/Bridge 90 degree Female elbow with wall plate Expansion compensator Clamp/Nipple The product features as below: 1, thin wall stainless steel pipe could last for 70 years, it is the same life time with normal buildings. 2, no smell, no rusty. 3, recycle material 4, avoid welding, avoid fire dangerous.
Detailed Photos

Company Profile


Certifications

Attend fair
Related Products

FAQ
Question 1: Are you a factory or a trading company?
Answer: We are a manufacturing facility.
Question 2: How can I obtain an accurate quotation?
Answer: To receive a precise quote, please provide us with detailed product requirements and specify your order quantity for cost estimation.
Question 3: What is your sample policy?
Answer: For most small, low-value items, we can supply samples at no cost, but you would be responsible for the courier charges. If the sample's value exceeds USD 20, we will require a 100% sample charge, and the courier costs will also be your responsibility.
Question 4: What are your payment terms?
Answer: For small orders, full payment is necessary upon placing the order. For larger orders, a 50% deposit is required before production, and the remaining balance should be settled before shipment.
Question 5: How can you ensure product quality?
Answer: 1. We have well-defined working and quality control procedures that we rigorously adhere to. 2. Our design and assembly teams possess extensive experience. 3. We manufacture most of our parts in-house, which makes it easier for us to maintain quality control.
Question 6: What is your lead time?
Answer: Please confirm the lead time with us on a per-order basis before finalizing your orders.

---
