Raw Material Plastic Mixer Machine / PVC Mixer Machine for High Capacity

US$150.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
xthh
Application Area
Chemical
Certification
CE, ISO
Condition
New
Heating Method
Self-Heating and Others
Mixing Drum Shape
Circular Groove
Stirring Type
Diving
Working
High Speed Mixer
Advantages
Low Noise and High Capacity
Electrics Parts
Siemens
Keywords
Plastic Mixing Machine
Production Capacity
180-1500kg, 10-1000kg/Hr
Inverter
ABB or Optional
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Film Package or Woodcase Package
Trademark
XINTING
Origin
China Zhangjiagang
HS Code
8422303090

Product Description

PVC powder mixing machine for plastic pipe extruder ,plastic pipe production line mixing machine hot and cold mixing machine

Product Application

Suitable for plastic,rubber,chemical and food industry, for powder or granulate material blending,coloring and drying. Typical application includes:&Production of PVC dry blend, filling and modification of plastics,pre-mixing of compounding process and premix of wood-plastic composites.

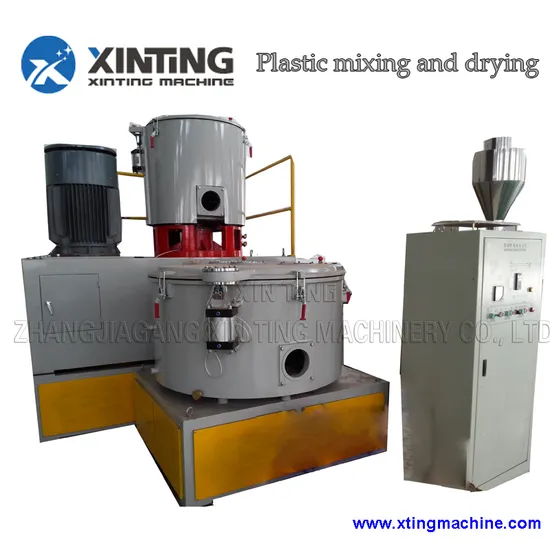

Description for hot and cold mixing machine:

SRL-Z series mixing unit is appliable for mixing,colouring and drying of various resin such as poly,PE,PP,PVC polypropylene,poly chloride etc,and in the process of drying and volatilization of engineering plastics such as ABS PC etc before forming and processing as well as in the mixing of phenolic resin.
The unit combines heat mixing and cool mixing together.The materials after heat mixing can be gotting into cool mixer for cooling automatically,exhausts remaining gass and avoids agglomerates.
It is an ideal equipment for plastics mixing.

Mixing machine data sheet
Model SRL-Z100/200Hot/cold mixing SRL-Z200/500Hot/cold mixing SRL-Z300/600Hot/cold mixing SRL-Z500/1000Hot/cold mixing SRL-Z500/1250Hot/cold mixing SRL-Z800/1600Hot/cold mixing
Total cubage(L) 100/200 200/500 300/600 500/1000 500/1250 800/1600
Effective cubage(L) 65/130 150/320 225/380 375/750 375/937 600/1050
Mixed speed(rpm) 650/1300/200 475/950/130 475/950/100 430/860/80 430/860/70 370/740/50
Mixed time(min/batch) 8-12 8-12 8-12 8-12 8-12 8-12
Motor power(kw) 14/22/7.5 30/42/7.5 40/55/7.5 55/75/15 55/75/15 83/110/22
Output(kg/h) 165 330 495 750 825
