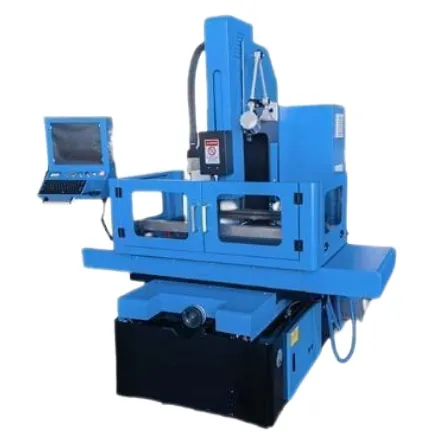

CNC630 High Speed Servo Drive CNC EDM Small Hole Drill Machine

Product Description

Leading Drilling EDM Manufacturer in China, Providing customer High End EDM machines with Fast cutting speed.
It is suitable for machining deep and small holes between Φ0.15mm-3mm in diameter on various conductive materials such as stainless steel, hardened steel, copper, aluminum, and cemented carbide.

Project Content	Parameter Description
Specifications	CNC630	CNC800	CNC1000
Machine dimensions (mm)	1700/1600/2150	2400/1800/2150	2400/2400/2150
X/Y worktable size (mm)	540/1000	594/1064	700/1270
X/Y travel (mm)	450/630	550/800	630/1000
Z axis travel (mm)	400	400	400
Spindle servo travel(mm)	360	360	360
Max load weight(kg)	500	1000	1300
Machine weight (kg)	1500	2100	2900
Diameter of electrode	Ø0.15-Ø3.0 mm
Max processing current	30 A
Working voltage	110V
Power supply	380VAC±5% 50Hz
Pulse Width	0-9 levels adjustable (us)
Pulse interval continuously adjustable	1:1-1:8 (pulse width: pulse interval)

Specifications	CNC630	CNC800	CNC1000
Machine power	3.6(KVA)
Max piercing speed	30-60 mm/min (depending on the material)
Max piercing thickness	400 mm
Positioning accuracy	≤ ±0.02 mm (100 mm)
Min movement of worktable	0.001 mm
Working fluid	Purified water
Filtrering method	Shallow gap
Three-axis control method	CNC
Three-axis drive method	Subdividing hybrid motors/AC servo motor(optional)
XYZ three-axis ball screw	Precision Ball Screw
XYZ three-axis guide	Linear Guide
Screw guide lubrication	Centralized oil supply
Control system	Shanghai Jiao Tong University
Handheld unit	Hand control box
Operational Controls	17 inch LCD screen, mouse and keyboard
Digital display	Three-axis
Power supply method	Spindle carbon brush power supply

Standard Configuration:
1) Digital high frequency: PWM special pulse outlet.High frequency soft start function, machining surface without burrs.
2) Limit function: Meet the lower limit automatically rises to the top, if the copper tube is replaced halfway, it can also rise directly to the top.
3) Fixed depth function: the use of encoding disk count, a, b phase orthogonal decoding, strong anti-interference ability, more accurate depth.
4) Bed structure: The pallet and column are made of HT200 castings.
5) Anti-interference touch industrial control display screen:High resolution, anti-electromagnetic interference.
6) Worktable: 0 level high-precision marble.
7) Ball screw: X/Y/Z Taiwan precision ball screw.
8) Z-axis motor:AC deceleration motor, lifting speed is fast, high sensitivity.
9) Three-axis CNC system: adopts encoder/player architecture, CNC encoder realizes the management of CNC process database files, CAD. G code and other engineering files.
10) The rotating head of the motor: adopts tungsten steel wear-resistant plate and multiple waterproof structure to ensure the rotating concentricity of the chuck.
11) Rotating head: national patent rotating head, the application of cemented carbide end seal technology, to ensure a long time without water leakage.

Processing Advantages:
1.It can save the information of multiple machining holes, avoid frequent input after power failure, and can re-edit and save the original machining.
2.In the unprocessed state, the processing trajectory line can be displayed in the hole schematic area to simulate the processing sequence.
3.With intelligent tool lifting function: set the workpiece thickness, workpiece punching, one-key processing end, automatically lift to the surface of the workpiece.
4.During multi-hole processing, it can forcibly exit the processing of the current hole and switch to the next hole for processing.
Contact us for more details, you will get reply within 24 hours .

---
