Product Details
Product Description
Product Description
Day old chicks transported vehicle is also called baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
baby chick truck, young chicks transported truck. There are several electronic ventilator fans on the top, and the left-right sides with several slidable windows to keep air ventilated. There is cooling reefer, adjusted the temperature freely, suitable for transporting farm poultry, etc.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
1, Hot sale Dongfeng duolika day old chick transportation truck adopts dongfeng duolika LHD/RHD 4*2 original chassis, 3800mm wheelbase, Wanliyang 5 speed transmission, 7.50R16 tyres*6+1, single row driver cab with power steering and Camel storage battery, 2.4ton front axle, 4.2 tons rear axle, exhaust brake and air cut brake, Chaochai 120hp Euro 3 EGR diesel engine
2, dongfeng duolika baby chick transported truck is with the overall dimension (L*W*H): 6995×2285×3250 (mm), chick van body dimension (L*W*H): 5120×2050×2100 (mm).
If you're interested in our day old chick transported truck, please feel free to send email to truck0011@163.com or talk to Anita directly byWhatsapp/Wechat/Mob.: +86 13329899995.

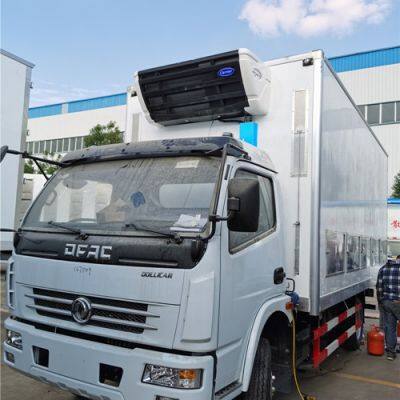

More pictures of 5T dongfeng day old chicks transported truck is as below.
Main parameters of dongfeng duolika baby chick transported truck chassis
Product name
| Dongfeng duolika LHD 4*2 day old chick transported truck
|
Overall dimension(L*W*H)(mm)
| 6995×2285×3250
| Chick van box dimension(L*W*H)mm
| 5100×2050×2100 (mm).
|
Drive type
| 4*2 LHD, RHD is selective
| Total mass
| 7490
|
Gearbox
| 5 speed gear box
| Tyre specification
| 7.50R16 tyres *6+1
|
Power steering
| Yes
| Exhaust braking
| Yes
|
Air-cut braking
| Yes
| Driver cab
| Dongfeng duolika single row driver cab without air conditioner
|
Engine
| Chaochai 120hp
| Emission standard
| Euro 3
|
Main technical parameters of day old chick van body
Performance and consumption
|
Heating system
| Watering system
| Without, client choose to install
|
Cooling system
| One refrigerated reefer
| China made high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab)
|
Ventilation system
| Air duct installed on the floor for air flow
| Two/three lines
|
Cold air ducts on the two sides of the van body
| Two cold air ducts for the refrigerated reefer
|
Blind windows
| 5 sets of blind windows for the left and right van sides (as the pictures show); 2 sets of blind windows for the front van plate.
Blind Windows: 5*2+2=12
|
electronic ventilator fans
| 1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4 sets of electronic ventilator fans for the van top
Electronic fans: 4+4=8
|
Sky-window
| Top mounted sky windows*2 Sky-windows: 2*1=2
|
Dimension
|
Chick van box body
| Length
| 5100mm
|
Width
| 2050mm
|
Height
| 2100mm
|
Refrigerated van box
| Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices;
Aluminum-patterned baseplate;
|
Dayold chick transport box truck is mainly used to transport dayold baby chicks
The material and main structures are very similar to common refrigerated trucks, with FRP inside and outside plate, and middle material of box plate is PU foam insulation material, so it has very good thermal insulation capacity
The ventilation system is very important: blind window, electric fans, hot and cold air aisle, front air inlets
The heating system: for some cold areas, the box body will be equipped with heating device to warm the inside of box body
The cooling system: for the inside temperature of box body, commonly should be maintained at 10~20℃ which is the best comfortable temperature for dayold chicks. So refrigeration unit is a must, according to different size box and environment temperature in the country. Here for this 8.6m box, it is equipped with Thermo King T800 refrigeration unit. Of course, we also have Hanxue, Kaixue, Huatai, and other good brand refrigeration units
We can provide 4m to 9m baby chick transport box trucks
We can provide complete trucks and also we can provide box body with equipment only
Manufactured by our company, best production craft, sandwich structure freezer box, good thermal insulation capacity
Very light curb weight, fuel saving, and load more weight of cargoes
Truck box new craft, aluminum box edge reinforced, more strength
Optional refrigeration unit: -15℃~0℃, -5℃~0℃, 0℃~5℃, not only cooling, we also have heating unit
>>
