1/4 3/8 1/2 5/8 Corrugated Copper Pipe Good Quality 20m

Product Description

Product Description

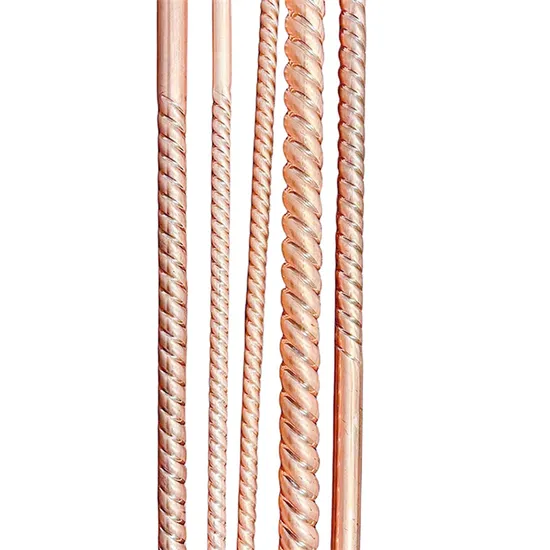

Insulated corrugated copper pipe features:
1. High quality insulation pipe:
1)several types: PE / XPE / IXPE / Rubber, two layers / single layer, etc.
2)Thickness 8mm~20mm.
3)Anti-UV, Low water absorption, Low thermal conductivity.
4)Surface can be printed with words.
5)Standards comply with EN13501, M1, ASTM E84, AS1530, RoHS, etc.
2. All sizes and thickness of high quality copper tubes, as your requirements. Standards comply with EN12735, JIS H3300, ASTM B280, AS1571, RoHS, etc.
3. Type: single or pair types.
4. With or without flared nuts.
5. Length: 1~50 meters.
6. Suitable for any gas: R22, R407C, R410A, R404A, R507C, etc.
7. Light weight, good thermal conductivity.
8. Easy and quick installation, saving time and money. Easy transport.
9. Seamlessness prevents from moisture entry or dripping.
10. Can be with accessories: Nut, Drain pipe, Tape, PVC wall-fix tape, Joint insulation pipe, PVC wall-hole sleeve and cap, Electrical tape, Seal plaster, etc.

Type (O.D. of copper tube)	Length (m)	Remark
1/4"(6.35mm) or 5 / 6mm	1 - 50	If you want the ends of flared nuts, the length should be not more than 10m. All details can be according to your requirements!
3/8"(9.52mm) or 8 / 10mm
1/2"(12.70mm) or 12 / 14mm
5/8"(15.88mm) or 15 / 16mm	1 - 30
3/4"(19.05mm) or 18 / 19mm
7/8"(22.22mm) or 20 / 22mm	1 -25
1/4"(6.35mm)+ 3/8"(9.52mm) or 5 / 6mm+8 / 10mm	1 - 30
1/4"(6.35mm)+ 1/2"(12.70mm) or 5/ 6mm+12 / 14mm
1/4"(6.35mm)+ 5/8"(15.88mm) or 5/ 6mm+15 / 16mm
3/8"(9.52mm)+ 1/2"(12.70mm) or 8 / 10mm+12 / 14mm
3/8"(9.52mm)+ 5/8"(15.88mm) or 8 / 10mm+15 / 16mm
3/8"(9.52mm)+ 3/4"(19.05mm) or 8 / 10mm+18 / 19mm
1/2"(12.70mm)+ 3/4"(19.05mm) or 12 / 14mm+18 / 19mm

Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.
Advanced One-Stop Purchasing Service. Welcome !

Contact:
Nicole
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add:No.91 Hanjiang Road, New District, Changzhou, Jiangsu, China.

---
