Round Bentonite Cat Litter Granulator Spherical Bentonite Cat Litter Production Line

Product Description

Round bentonite cat litter granulator Spherical Bentonite cat litter production line
TECHNICAL PARAMETER

Model	Inner diam (mm)	Side height (mm)	Volum (m3)	Rotation spees(r/min)	Motor power(kw)	Capacity(t/h)
IKL1000	1000	250	0.4	24	2.2	0.3-0.5
IKL1500	1500	300	1.1	22	5.5	0.5-0.8
IKL1800	1800	300	1.4	18	5.5	0.6-1.0
IKL2000	2000	350	1.8	18	7.5	0.8-1.2
IKL2500	2500	350	2.5	18	7.5	1.0-1.5
IKL2800	2800	400	3.3	18	11	1.0-2.5
IKL3000	3000	450	3.9	16	11	2.0-3.0
IKL32/36	3200/3600	500/550	4.3/5.5	13.6/11.3	15/18.5	2.0-3.5/3.0-5.0

FEATURE 1.The granulating rate can be reached more than 93%.2.The design of granulator which greatly reduce the labor intensity and improves labor efficiency.3.The disc is sturdy,durable,anti-corrosion,has long life and requires very less maintenance.4.Easy operation and maintenance.5.Long service life.6.Quick profit,good economic returns.
CAT LITTER PROCESS TECHNOLOGY
1.Raw materials receiving& Mixing Process:Raw materials can be tofu, bean curd residue, soybean curb residue, soyabean fiber, corn starch, pea flour, bentonite, corn flour, soyabean meal, guar gum and etc. Raw materials are mixed according to a certain formula and ratio.Mixing is considered to be one of the essential operations in cat litter processing.
2.Pelletizing Process:
Cat Litter pellet mill/ cat litter granulator is the core equipment of the whole cat litter production line. According to different raw material, material formula and working condition, we can offer you different pellet mills.
3. Drying Process:
After cat litter is pelletized, the moisture content is high, cat litters are dired to about 8% and sterilized by our micro-wave dryer, it could be stored for long time.

4.Cooling& Sifting Process:
The dried cat litter is a little hot. Counter-flow cooler & sifter is designed to cool tofu bentonite cat litter and screen qualified cat litters. It can decrease the temperature of cat litters, after processing, you can get the qualified cat litter without fine powder.
5. Packing Process:Finally, tofu cat litter/ bentonite cat litter/ pine wood cat litter should be packed for transporting, storing or selling.
6.Automatic Electrical Control System(Customized):
With the automatic electrical control system, the production line is with high efficiency and convenient operation.
FLOW CHART OF CAT LITTER PRODUCTION LINE
We can design and customize different capacity, processing according to your formula and requirement.
Here is the flow chart for cat litter line for your reference.

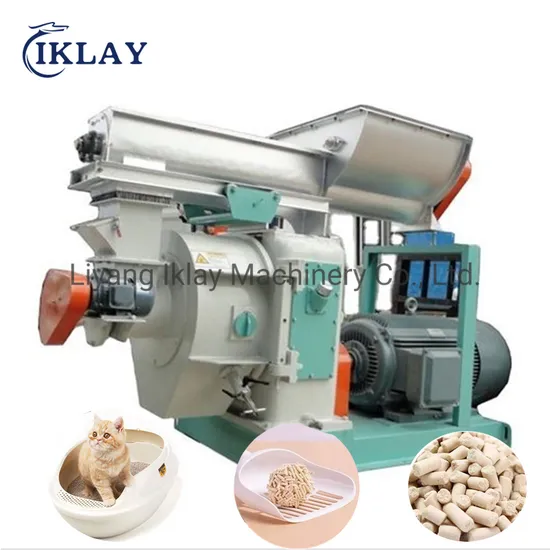

PHOTOS FOR CAT LITTER PELLET MACHINE/ PELLET MILL
PHOTOS FOR CAT LITTER PRODUCTION LINE
Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.

---
