24-Blades Mounted Light-Duty Disc Harrow

Product Description

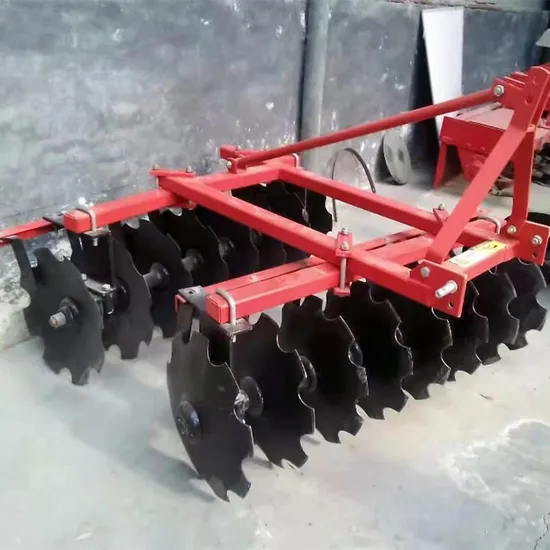

1BQX Series Mounted Light-Duty Disc Harrow
The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with
scalloped disc, could be used with from 12HP to 80HP type tractors.

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7		1BQX-1.9	1BQX-12.3	1BQX-2.7
Overall size (CM)	159*123*83	159*144*83	190*160*112	190*182*112		220*205*112	265*245*130	275*285*130
Weight (Kg)	200	220	240	260		300	420	500
Working width (M)	1.1	1.3	1.5	1.7		1.9	2.3	2.5
Working depth (Cm)	8-14
Qty. of discs	12	14	16	18	20		24	28
Dia. Of disc (Mm)	460
Thickness of disc (Mm)	3
Disc spacing (Mm)	200
Productivity (Ha/h)	0.7	0.84	0.97	1.1	1.3		1.5	1.7
Linkage	Three point mounted
Matched Power (Hp)	12-20	14-25	25-35	30-40	35-45		50-60	55-70

Harrow disc : 460 diameter by 3mm thickness , made of 65Mn Spring Steel , the hardness is 38-46HRC, good toughness and high wear resisting . 2.Square shaft : 40*40mm , made of 45# steel ,with tempering and quenching , so our shaft can not broke. 3.The 1BQX light Disc harrow main frame produced with 120*120*6mm tube , it is strong to use . The disc harrow with sealed bearing pedestal , with oil hole , easy to maintain. If you need this light-duty plough,please contact me :

---
