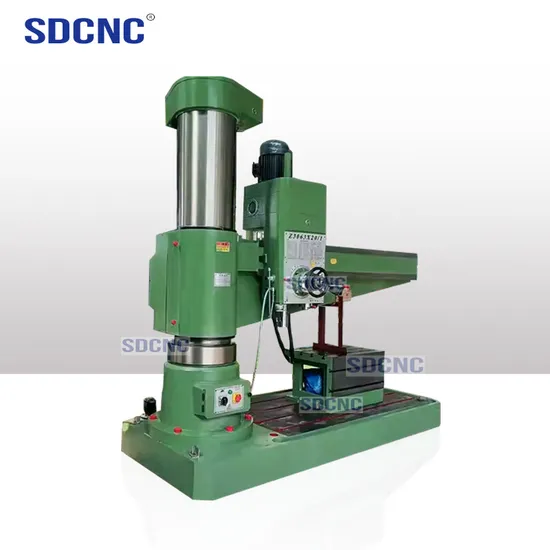

Hydraulic Z3063 Radial Drilling Machine Double Column Automatic Tapping

US$9,700.00-11,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3063
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Model Number
Z3063
Product Name
Radial Drilling Machine
Keyword
Z3063 Radial Drilling Machine
Function
Drilling Milling Machining
Transport Package
Wood Packaging
Specification
3200*1200*3430
Trademark
SDCNC
Origin
Shandong China

Packaging & Delivery

Package Size
3200.00cm * 1200.00cm * 3430.00cm
Package Gross Weight
6500.000kg

Product Description


SPECIFICATIONS

The main performance characteristics:
1.The use of hydraulic selection of transmission mechanism, can save the auxiliary time.
2. Spindle positive, parking (brake), transmission, free action, controlled by a handle, convenient operation.
3. The spindle box, rocker arm, internal and external column using the hydraulic driven diamond block clamping mechanism,
clamping reliable.
4. The rocker rail, cylindrical surface, spindle, spindle sleeve and internal and external cylindrical rotary roller, and other places were
carried out quenching treatment, can be long-term stability of machine tool accuracy, extended service life.
5. Has the perfect safety protection device and the external column protection.
6. In the structural design and manufacturing process, also adopted a series of effective measures, so that the accuracy of machine
tools and the life of the whole machine are extended.

Specifications Z3063*20A
Max. drilling diameter Φ63
Distance from spindle nose to table surface 220-1300
Distance between spindle axis and column surface 430-1900
Spindle travel 400
Spindle taper Morse No. 5
Spindle speeds range 16-1600(16 steps)
Spindle feeding range 0.04-3.2(16 steps)
Rocker rotary angle +/-90°
Main motor power 5.5
Movements motor power 1.5
N/W 6500
Overall dimension (L*W*H)) 3080×1250×3205


our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
