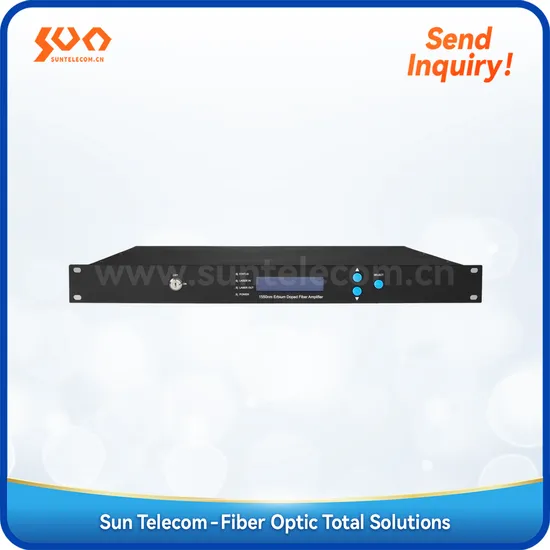

High Power CATV Optical Fiber Equipment 1550nm FTTH EDFA

Product Description

Product Description Sun Telecom's SUN-FA series of fiber amplifier uses a sophisticated high-efficiency radiator at the optimum temperature to extend the working life of the product. It uses America OFS erbium-doped/Erbium-Ytterbium-Doped fiber and JDSU, Bookham or Furukawa pump laser to improve the stability of the product.

Features VFD or LED displays the working conditions and trouble alarm RJ45 port for SNMP remote management RS232 for local management
Application FTTH solutions Cable television distribution network EOC, etc.
Specifications

Parameters	Specification
Model	SUN-EDFA	SUN-EYDFA
Total Output Power (dBm)	13 ~ 27	28 ~ 41
No. of Output Ports	1/2/4	8/16/32/64
Each Port Output Power (dBm)	13 ~ 27	16 ~ 23
Input Power (dBm)	-10 ~ 10	-8~10
Wavelength (nm)	1535~1565	1545~1565
Output Power Stability (dB)	≤ ±0.2
Bias Oscillation Sensitivity (dB)	< 0.2
Bias Oscillation Dispersion (PS)	< 0.5
Return Loss (dB)	≥ 45
Optical Connector	FC/APC or SC/APC
Noise Ratio (dB)	≤ 5.0	≤ 6.0
Interface	RJ45 (SNMP), RS232 or RS485
Power (W)	50
Operation Voltage (V)	AC: 90 ~ 265 DC: -48
Working Temperature (°C)	-20 ~ +85
Dimensions (mm)	483 (L) x 380 (W) x 44.5 (H)	483 (L) x 380 (W) x 89 (H)
Weight (kg)	5	7

Standard Package

No.	Name	Unit	Quantity
1	Fiber Amplifier	set	1
2	Power Adapter	piece	1 or 2

Ordering Information
Example: SUN-EDFA-4P19-AC
Erbium-Doped Fiber Amplifier; Laser wavelength: 1550nm; Optical interface: SC/APC or FC/APC optional; Four output ports, each port output power: ≥19dBm; Single power supply: 90~265V
