Product Description
Product Description

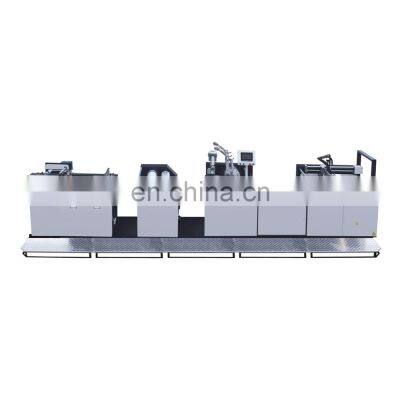

Product OverviewYFMA-590 Automatic Paper Laminating MmachineRoller Diameter: 268mm and 320mmPressure: hydraulic pressureApplications: To suit two kinds of film:pre-glued film and glueless filmFEATURES AT A GLANCE• High Speed • Easy to operate • Stream feeder • Servo-controlled pump • Electromagnetic heating • Stable and precise • 1 year warrantyPRODUCT SPECIFICATIONSNoItemData1ModelYFMA-590Y2Power20kw3Max paper size590*760mm4Min paper size240*240mm5Paper weight100-500g/m26Laminating speed0-80m/min7Voltage380V8Temperature80-110oC9Total weight6000kg10Overall dimension6800*1300*1800mmPRODUCT CONFIGURATION1.Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.2.Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.3.Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.4.High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.5.Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.6.Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.7.The combination of air expansion shaft and braking device can adjust film release tension and speed.8.Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.9.Film perforating wheel perforates film edge for the automatic cut of laminated paper.10.Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.11.Pneumatic cutting system realizes automatic paper cut.12.Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.Automatic paper feeding system1：big format feeder2：sucking flat table( belt wide 10cm)3：front guild4：High accuracy servo overlap5：Anti-clutter magnet safety deviceLaminating system1：electromagnetic heating2 ：film straigt roller3：automatic pressure4：paper lacking and breaking system6：double-sided lamination (optional）Separation systemSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.Embossing System1:can choose silk and frosted patterns or customized patterns2: Pre-heating makes the effect better3: Cold forming, more 3DAutomatic paper stacker1：stacker2：counter3：Automatic liftingCompany ProfileWhy Choose Us?1. With 10 years' Experience2. Having ISO 9001-Certified Factory3. Strong R&D capability4. High Quality Guaranteed5. First Class Service And Best PricesNew Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.FAQQ1: What it is advantage of your products?A1: Easily operation and simply maintenance. Also coat effective in market.Q2: How long for the guarantee?A2: 12 month free warranty.Q3: The engineer is available for overseas services?A3: Yes, we supply engineer who is good at communication and understand English.Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.Q5: What is the brands for the electrical system?A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.Q6: Which level of your products in market?A6: High and mid grade quality with nice price.Q7: Where are you?A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.Q8: Will you supply for OEM or ODM orders?A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.Contact with Us
>>
