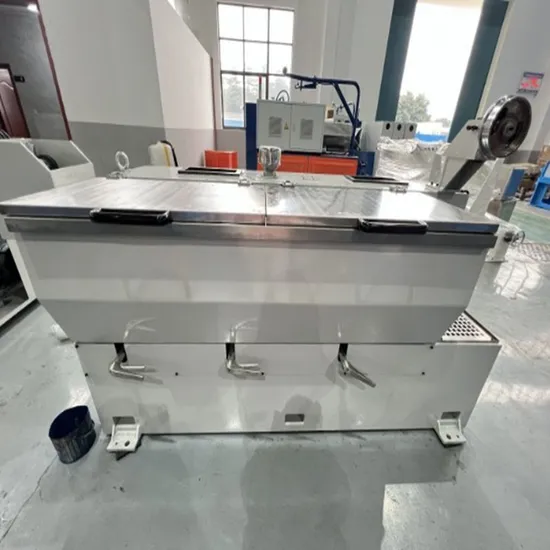

9 Dies Intermediate Copper Wire Multi Wire Drawing Machine

Product Description

Application
This type is used for drawing and annealing two copper wires from 2.5-3.5mm to 1.0-2.8mm.
Feature
1) Max.Dies Qty: 9
2) Outlet wire size: 1.0-2.8mm
3) Max speed:2000m/min
4) Raw material: copper wire
5) Vertical or horizontal annealing.
Product Parameters

Machine Type	SY-9DH.2
Drawing Wire No.	2 Wires
Inlet Dia. (mm)	φ2.5~φ3.5
Outlet Dia.(mm)	2*φ1.0~φ2.8
Max. Die No.	9
Max. Line Speed(m/min)	1200
Body Structure	Ironed Cast
Drawing Capstan	Carbon fiber and Tungsten Plasma Capstan
Main Motor Power (kw)	75
Take-up Motor(kw)	15
Capstan Dia. (Max.)(mm)	φ300
Fix Speed Capstan Dia.(mm)	φ300
Transmission Type	By Gear
Lubrication Type	Full Immersion
Tension Control	Air Pressure Type
Take-up Type	Shaftless Type
Take-up Bobbin Size(mm)	φ500 (Bore φ127)
	φ630 (Bore φ127)
Traversing Type	Gear Motor Type
Brake	Disc Brake

Machine Characteristic
1). Manpower saving, space-saving, electricity saving.
2). Wear-resistant capstan can keep a long life.
3). Fully immersed lubrication, the lubrication tank body is separated from the gearbox without oil mixed.
4). Longer annealing section with tension ensures good and stable elongation.
5). Unify 250 cast-iron main frame, precision machinery, no shock.
Delivery Photo
Company Profile
Mentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.
Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.
Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers.
FAQ
Q1: What's the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: The engineer will be dispatched as needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage.
Q4: Can you support a complete project instead of a single machine?
A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.

---
