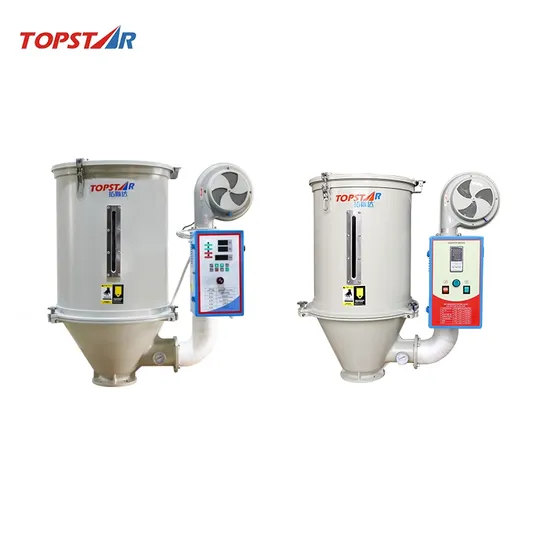

Efficient Plastic Hot Air Dryer Hopper for ABS, PP, PE, PC

Product Description

China Manufacturer Plastic Hot Air Dryer Hopper for ABS/PP/PE/PC
Product Description

Product Structure Diagram
Product Parameters

Model		THD-6DT-L	THD-12DT-L	THD-25DT-L	THD-50DT-L	THD-75DT-L	THD-100DT-L	THD-150DT-L	THD-200DT-L	THD-300DT-L	THD-400DT-L	THD-600DT-L	THD-800DT-L	THD-1000DT-L	THD-1500DT-L	THD-2000DT-L	THD-2400DT-L
Hopper Capacity	KG	6	12	25	50	75	100	150	200	300	400	600	800	1000	1500	2000	2400
Blower Power	W	75	75	135	155	210	215	320	320	340	340	1000	1500	1500	2200	2200	3700
Heater Power	KW	0.9	1.8	3.0	4.0	6.0	9.0	9.0	12.0	15.0	18.0	21.0	24.0	32.0	48.0	48.0	32.0
Drying Temp	ºC	150ºC
Outlet Size	inch	1.5	1.5	1.5	2	2	2.5	2.5	2.5	3	3	4	4	5	5	5	6
Inside Hopper	M	0.21	0.25	0.287	0.387	0.422	0.457	0.512	0.607	0.67	0.76	0.9	0.9	1	1.2	1.2	1.4
Outside Hopper	M	0.253	0.293	0.33	0.43	0.465	0.5	0.595	0.69	0.754	0.844	0.985	0.944	1.05	1.25	1.25	1.5
Flange ID Dia	M	0.04	0.04	0.05	0.05	0.065	0.065	0.065	0.0762	0.1	0.1	0.1	0.11	0.11	0.11	0.11	0.1
Flange PCD Dia	M	0.09	0.06	0.125*0.125	0.13*0.13	0.13*0.13	0.13*0.13	0.13*0.13	0.15*0.2	0.15*0.2	0.21*0.25	0.2	0.2	0.2	0.2	0.2	0.21*0.25
Flange OD Dia	M	0.12	0.12*0.12	0.175*0.175	0.175*0.175	0.175*0.175	0.175*0.175	0.175*0.175	0.175*0.175	0.18*0.245	0.18*0.245	0.25*0.3	0.23	0.23	0.23	0.23	0.25*0.3
Blower PCD Dia	M	0.07	0.136	0.163			0.208	0.254				0.270.3
Blower OD Dia	M	0.1	0.148	0.18			022	0.27
Power Supply	V	380VAC 3P/PE 50Hz
Control Voltage	V	220VAC 1P/PE 50Hz
Total Power	KW	1	2.1	3.4	4.4	4.4	6.4	9.5	12.5	15.5	18.5	22.5	25.5	33.8	50.5	50.6	36
Wires Specification	mm2	5*1.5			5*2.5	4*4+1*2.5		4*6+1*4			4*10+1*6			3*16+2*10	3*25+2*16		3*16+2*10
Wires Length	M	2
Dimensions	L(mm)	0.49	0.525	0.605	0.715	0.74	0.8	0.95	1.05	1.14	1.26	1.49	1.86	1.35	1.55	1.55	2.18
	W(mm)	0.36	0.36	0.57	0.66	0.67	0.69	0.85	0.9	0.91	0.98	1.1	1.25	1.05	1.25	1.25	1.62
	H(mm)	0.55	0..65	0.88	1.09	1.26	1.385	1.55	1.65	1.76	1.86	2.57	2.75	2.5	2.8	3.3	4.11
Weight	KG	30	30	47	63	65	95	130	155	186	225	280	320	380	500	580	650
Flange ID2	M	0.04	0.04	0.05	0.05	0.05	0.063	0.063	0.076	0.1	0.1	0.101	0.101	0.101	0.010	0.010	0.010
Flange L1	M	0.09*0.09	0.09*0.09	0.13*0.13	0.13*0.13	0.13*0.13	0.13*0.13	0.13*0.13	0.12*0.141	0.12*0.141	0.12*0.141	0.21*0.21	0.21*0.21	0.21*0.21	0.21*0.21	0.21*0.21	0.21*0.21
Flange L2	M	0.12*0.12	0.12*0.12	0.175*0.175	0.175*0.175	0.175*0.175	0.175*0.175	0.175*0.175	0.175*0.175	0.18*0.18	0.18*0.18	0.25*0.25	0.25*0.25	0.25*0.25	0.25*0.25	0.25*0.25	0.25*0.25
Optional Accessories	1. Magnetic Seat 2. Hopper Magnet 3. Hot Air Recycle 4. Exhaust Air Filter 5. L Type Floor Stands 6. A Type Floor Stands 7. Material Suction Box

Note: We reserve right to change specifications without prior notice.

After Sales Service

Company Profile

FAQ
Are you a manufacturer?
A: Yes, we are a dedicated manufacturer specializing in our product line.
What is your warranty policy?
A:
All our products come with a one-year warranty. We offer 24-hour telephone support. We maintain a substantial inventory of components and spare parts for quick replacements of easily worn items. Each machine is supplied with a comprehensive toolkit. Can we customize the robot with our logo?
A: Yes, we can accommodate client branding, including logo placement on the robots.
How do you ensure the performance quality of your products?
A: Topstar implements a rigorous inspection process throughout production. Upon completion, our Quality Control (QC) team conducts thorough checks and provides inspection videos and photographs for quality verification. Should any issues arise, we will send troubleshooting guidance and solutions. Additionally, we welcome third-party inspections or client visits for on-site evaluations.
Who should I contact to initiate an application?
A: Our experienced sales engineers are available to assist you with any inquiries and support you may need to start your application.
What is your delivery timeline for equipment?
A: For items in stock, delivery is typically within 1-7 days. Customized equipment or non-stock items generally require 30-35 days for production.
What are your payment terms?
A: Our payment structure requires a 70% prepayment, with the remaining 30% due before delivery of the cargo.
What is the purchasing process for your machines?
A: The purchasing process is as follows:
Specify requirements → Confirm model and pricing → Sign a Proforma Invoice (PI) → Pay the deposit → Manufacture the machine → Settle the balance → Ship the equipment and provide tracking information.

---
