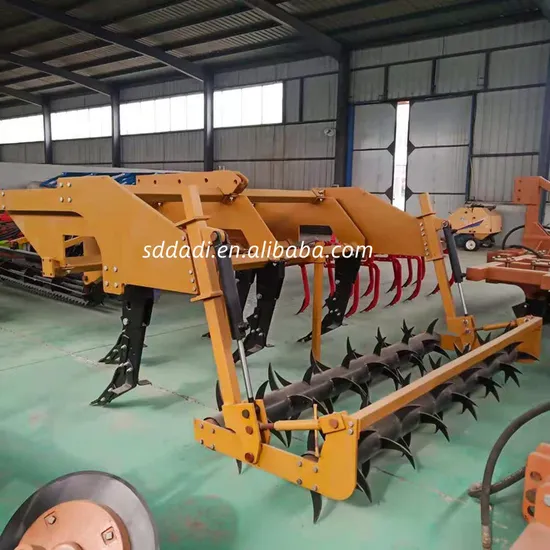

Subsoiler Machinery/Farm Machinery/Cultivator (1PS series)

Product Description

Agricultural High Quality Subsoiler
The subsoiling machine is mainly used for soil subsoiling tillage, breaking the bottom layer, deepening the tilling layer, improving the structure of the tilling layer, improving the soil water storage and moisture retention, drought and waterlogging resistance, which is suitable for cultivation in arid, semi-arid areas and hilly areas. The deep porosity of the soil increases, and the proportion of the three phases (solid, liquid and gas) is properly adjusted. Subsoiler has the effect of increasing temperature, preventing cold and slowing down soil and water loss and wind erosion. The soil that is poor and not suitable for deep turning, such as saline-alkali soil, Albic soil, loess, etc., combined with fertilization, deep loosening operation can improve the soil.

Name	Ripper
Model	1PS-150	1PS-250	1PS-350
Max. working width (mm)	1500	2500	3500
Max. working depth (mm)	500	500	500
Qty. of tine (pcs)	3	5	7
Matched power (hp)	≥120	≥160	≥200
Weight (kg)	950	1100	1250
Overall Dimension (mm)	1500×3100×1600	2550×3100×1600	3550×3100×1600
Linkage	Three-point mounted

---
