Auto Bottle Blow Moulding Machine/Bottle Making Plastic Mould

Product Description

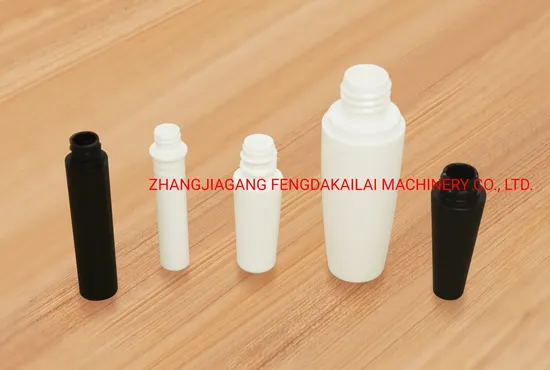

50ml foaming hand sanitizer bottle mold
About us
1) More than 15 years experience in Mould making area
2) Best service supplied with Good quality products,fast delivery time with experienced working team
References of cavity details on each machine models

Approx. Volume (ml)	Max.body diameter (mm)	Mini.neck diameter (mm)	Max.height (mm)	Mini.weight(g)	Max.cavity FD30S	Max.cavity FD50S	Max.cavity FD70S
10	24	7	60	2	10	13	18
30	30	8	75	4	8	11	16
60	45	14	90	7	6	8	11
80	50	15	100	9	5	7	10
120	60	18	120	14	4	6	8
250	65	20	150	25	3	4	6
500	85	25	220	35	2	3	4
1000	95	40	240	60	1	2	3

Mold specifications

NO.	items	remarks
1	Injection die body	Stainless iron 4Cr13(HRC45-48)
2	Blow die body	Stainless iron 4Cr13(HRC45-48)
3	Neck insert	Stainless iron 4Cr13(HRC50)
4	Core rod Titanium Coating	4Cr13(HRC50)with coating
5	Adapter board	45steel and did electroplating
6	Mold plate	45steel and did electroplating
7	Bottom insert	4cr13
8	nozzle	Brass yellow metal
9	Hot runner plate	4cr13
10	baffle	45steel and did electroplating
11	Nozzle platen	4cr13
12	Material feeding seat	45steel
13	Core rod holder	Aluminum 6061
14	Stripping plate	Aluminum 6061
15	Oil pipe	PTFE

MOULD FEATURES
1) Core, Cavity and Neck can be interchanged
2) Excellent hot runner system and cooling system
3) High quality materials and proven mold design ensure long life time
4) Pneumatic Pin Valve strcuture without manual cut tail, reduce the labor force
5) Double self-lock structure ensures mold thickness tolerance less than 0.1mm
6)core rods coating for long life use and good for products making.
Product Description servo system save 30% power. PLC computer controls Hot runner injection blow mold with horizontal three positions for continued production with no any wastage Easy to install injection blow mold. Top branded electric parts and hydraulic parts for long service life Bottle volume:1.5ml to 1000ml Materials available:HDPE/LDPE/LLDPE/PP/PS... Mold size:440×260 or 600×330 or 780×330.... Mold packed weight(G.W.):260kg/600kgs/960kgs
Processing steps

Mold Manufacturing Procedures

1. customer supplied bottle samples or specifications for our designer making drawings

2. customer check and signed the drawing if no any doubts

3. order confirmed with advance payment

4. Mold designs and tooling works

5. as per scheduled taken trial of mold and measuring all specifications against signed drawings

6. customer received samples and check everything,then give feedback

7. we will do modifications if required or else will do final works after get customer approvement

8. mold delivery against balance payment

9. supplied mold install guidance or if required by customer can visit customer end for trials

10. giving online service forever

Packages and delivery

---
