CCTV DVR, Mdvr

US$10.00 10 Pieces (MOQ)

Basic Info.

Model NO.
MS-586
Compressed Format
H.264
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
8 Channel
Audio Input/Output
8 Channel
Remote Control
With Remote Control
SD
256g
HDD
2t
Resolution Max
1080
Resolution Support
CVBS/960h/Ahd Camera (600tvl, 1080P, 720p, D1)
Power IC Brand
Linear
Input Voltage
6-36V DC
Transport Package
Gift Box
Trademark
mingshang
Origin
China
HS Code
8521909090
Production Capacity
50000/Year

Packaging & Delivery

Package Size
8.00cm * 8.00cm * 5.00cm
Package Gross Weight
1.500kg

Product Description

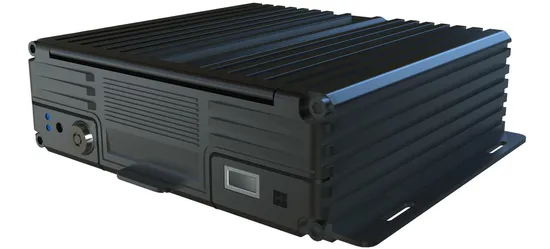

8CH ,4CH HD mobile DVR
With GPS,G-sensor,motion detection,3G/4G/wi-fi
FEATURES
Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
Ÿ 8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
Ÿ 8CH local recording with 1080N resolution in real time
Power:
Ÿ Professional In-Vehicle power design, Linear power IC 8-32V DC Wide Voltage Range
Ÿ Multi protection circuits like under-voltage, short, reversed plug-in
Ÿ Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Ÿ Special file management system to encrypt and protect the data
Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Ÿ Support 2.5 inch HDD/SSD, maximum 2TB
Ÿ Support SD card storage, maximum 256GB
Ÿ Support hard disk heating
Transmission Interface:
Ÿ Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA
Ÿ Support GPS/BD optional, high sensitivity, fast positioning
Ÿ Support wireless download by WiFi, 802.11b/g/n, 2.4GHz
Technical parameter:
Item Device parameter Performance
System Main processor Hi3520DV300
Operating system Embedded Linux OS
Operating language Chinese/English
Operating interface GUI, support mouse
Password security User password/Admin password
Audio
&
Video
 Video standard PAL/NTSC
Video compression H.264
Image resolution 1080N/720P/960H/D1/CIF
Playback quality 1080N/720P/960H/D1/CIF
Compound mode A variety of ways
Image display Single/split/QUAD display optional
Audio Compression G.726
Audio recording Audio & Video synchronized recording
Recording & Playback Recording mode Manual/Alarm
Video bit rate Full frame 4096Mbps,6 classes image quality optional
Audio bit rate 8KB/s
Storage media SD card + HDD/SSD storage
Video inquiry Inquiry by channel/Recording type
Local playback Playback by file
Firmware upgrading Upgrading mode Manual/Automatical/Remote
Upgrading method USB disk/Wireless network/SD card
Interface AV input 8ch aviation interface
HDD/SSD 1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card 2 SDXC High speed card (up to 256GB)
USB interface 1 USB 2.0 (support U disk/mouse)
Ignition input 1 ACC signal
UART 1 LVTTL Level
LED Indication PWR/RUN
Disk lock 1
Debug port 1
Function extention GPS/BD Support detecting antenna Plug in/Unplug/Short circuit
3G/4G Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
WIFI 802.11b/g/n, 2.4GHz
Others Power input 8~32V DC
Power output 5V 300mA
Power consumption Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature -25 --- 80ºC
Storage 1080N 1.2G/h/channel
720P 1G/h/channel
960H 750M/h/channel
