US$9,400.00-13,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Max. Table Load(Kg)
500kgs
Table Travel
700/255/350(Manual) 680/244/330(Auto)
Control Method
Semi-Closed Loop Control
Transport Package
Export Wooden CTN
Specification
2294*1770*1904
Product Description

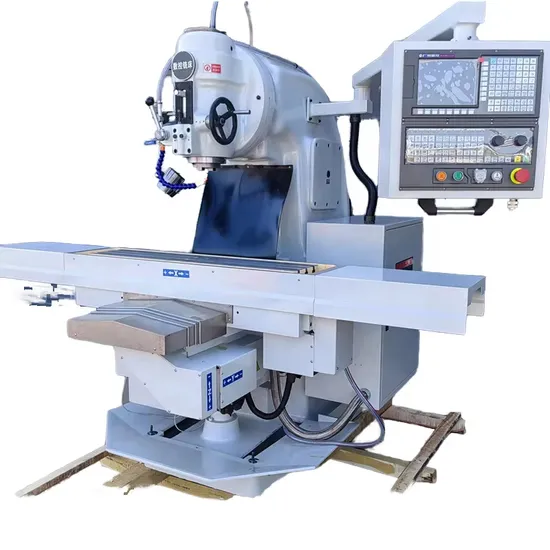

PRODUCT SPECIFICATIONS
Specifications
| Units
| XK5032
| XK5040
|
Table size
| mm
| 320x1325
| 400X1700
|
Table travel(X.Y.Z)
| mm
| 900x250x350
| 900X330X360
|
T-type slot (numbers / width /space)
| mm
| 3- 16/18-70
| 3-18-90
|
Spindle taper
|
| ISO50(7:24)
| ISO50(7:24)
|
Spindle bore diameter
| mm
| 29
| 29
|
Spindle front bearing diameter
| mm
| 90
| 100
|
Axial movement distance of the spindle
| mm
| 70
| 85
|
Max. swivel angle of vertical milling head
|
| ±45°
| ±45°
|
Distance from the spindle end to the table surface
| mm
| 45-415
| 105-470
|
Distance from the bed's vertical guide rail to the spindle centerline
| mm
| 350
| 450
|
Number of spindle speed levels
|
| 18 Steps
| 18 Steps
|
Spindle speed range
| r/min
| 30-1500
| 30-1500
|
Table feed range
| mm/min
| 0-4000
| 0-4000
|
Worktable rapid traverse speed
| mm/min
| X:6000; Y:5000; Z:3000
| X:5000; Y:4000; Z:3000
|
Main motor power
| kw
| 7.5
| 11
|
Main motor speed
| r/min
| 1440
| 1440
|
Feeding motor power in X direction
| mm/min
| X:2.3 ; Y:2.3; Z:3.5
| X:2 ; Y:2; Z:3.5
|
Cooling pump motor power
| kw
| 0.015
| 0.09
|
Length x Width x Height
| mm
| 2600x1700x2400
| 2510x2100x2400
|
Machine tool weight
| kg
| 2900
| 4250
|
Max. load working table
| kg
| 500
| 500
|
Standard Accessories of Mill Machine
* MIDDLE SLEEVE
* INNER HEXAGONAL SPANNER
*SINGLE ENDED SPANNER
*MILLING ARBOR
*DRAW BAR
*DOUBLE OPEN ENDED SPANNER
Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
>>
