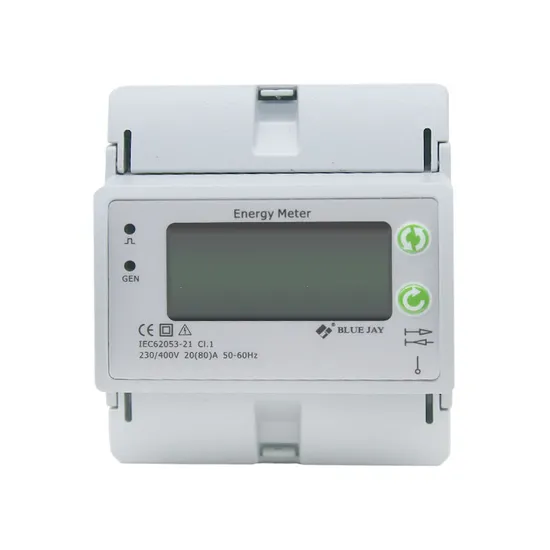

DIN Rail Energy Consumption Meter Remote Control Enclosure Waterproof Electric Energy Meter

Product Description

The DEM-4M1D din rail energy meter is suited for single-phase measurement, and use scenarios such as residential, public facilities, and industrial use. 19D-24D dual rate electricity meter can measure and display various important power parameters, optional communication ports support remote reading and monitoring. Bi-direction metering makes the DEM-4M1D wattmeter kwh lcd energy meter an excellent choice for the solar energy industry. Besides, the single-phase kwh meter price is very cheap. Feature
-. Detect active/reactive energy, power, frequency, Max demand, voltage, Current, and other
important power parameters in one screen
-. Provide energy import and export measurement (IMP & EXP)
-. High light white backlit LCD screen
-. Energy pulse output
-. RS485 Modbus communication (optional)
-. Standard 35mm din rail mounting
-. Maximum 100A current access
-. Accuracy: Class 1.0s
Specification

Voltage measurement	Rated 230V RMS value, Accuracy 0.5%,
Current measurement	Rated 10A, Max 80A, Start amp 0.04A, RMS value. Accuracy 0.5%; Overload 30times In in 0.01sec
Frequency	50/60Hz, Accuracy ±0.01Hz
Display	LCD with white backlit
Maximum display value	,9,999,999kWh
Energy accuracy	Class 1.0, IEC 62053-21
Digital port	RS-485 MODBUS-RTU
Pulse port	1600imp/kWh
Working environment	-25~55°C Altitude ≤2500m, 0~95%RH, non-condensing, non-corrosive gas
Storage environment	-40~70C
Voltage tolerance	2KV 1min
Shock voltage	6KV-1.2uS waveform
Insulation	Input, output, power supply to Shell >5MΩ
