Agriculture Wheat Seed Cleaning Processing Grain Sorting Machine

Product Description

What's this machine can do?
It can effectively remove light impurities by air aspiration, impurities with light bulk density by gravity table, impurities with large and small size by vibration screen.
Light impurities: mainly including grain skin, grain husk, somestraw and dust, etc.
Bad seeds: mainly including moth eaten, mildew, pathological changes, underdeveloped, poor grain and other bad seeds. Also some straw objects.
Large impurities: mainly including impurities whose overall dimension is larger than that of rice seeds, such as some larger straws, soil blocks, etc.
Small impurities: small rods, broken seed, sand and other small impurities.
The 5XFZ-25Q Series combination seed cleaner is suitable for processing various crops and all granular materials. Especially for wheat, rice seed, sesame, flaxseed, sunflower seed and other crops with small bulk density, the effect is better.
Flow Diagram

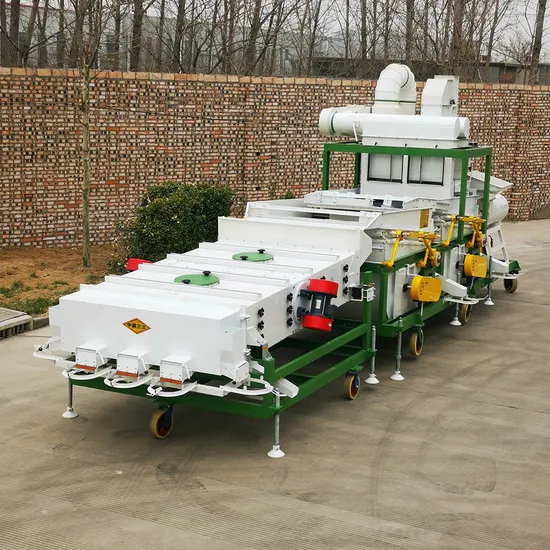

Detailed Photos
Product Advantages
Processing process: air separation (primary) → air separation (secondary) → gravity table(primary) → gravity table(secondary) → Vibration screener. Double Air suction part: use the aerodynamic characteristics to remove dust and light impurities, adopt the front and rear double suction duct structure, convenient air volume control, with cyclone duster. Double Gravity table part: positive pressure type gravity table, in accordance with the density separation principle to remove the less light impurities such as immature seed, germinated seed, moldy seeds, diseased seeds, moth eaten grain, etc. Screening part(Optional): The three or four layers screen structure of the vibrating screen is used to remove large and small impurities. It is equipped with rubber ball screen cleaning mechanism to prevent sieve hole from blocking. The vibration motor is used as the source. The magnitude and direction angle of vibration can be adjusted, and the frequency is 960 times / min. it has high reliability and long service life.
Product Parameters

Model		5XFZ-25Q	5XFZ-25QS	5XFZ-25QC1S
Capacity	Sesame	2000-4000 Kg/h	2000-4000 Kg/h
	Rice seed	3000-5000 Kg/h	3000-5000 Kg/h
	Maize and beans	5000-8000 Kg/h	5000-8000 Kg/h
	Wheat seed	8000-10000 Kg/h	8000-10000 Kg/h
Size(L×W×H)		3350×2200×3050 mm	6050×2200×3050 mm
Size of gravity table		2200×1650mm	2200×1650mm×2
Selecting rate		≥ 97%
Broken rate		≤ 0.2%
Total power		15.6 kW	24.20 kW	31.70 kW
Weight		2600 Kg	3000 Kg	3100 Kg
Wheat huller		Without	Without	With

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
FAQ
How to choose and purchase seed combination cleaner?
1. According to processing capacity requirements.
The processing capacity of our seed combination cleaner ranges from 5-30 tons/hour, and users need to select the appropriate model according to their own processing capacity.

2. According to the type of material.
Different models of combination cleaners are suitable for different types of crops and seeds, so users need to select the most suitable machine according to the actual materials. Some manufacturers have weak R&D capabilities, few models, and it is unscientific and unreasonable to use a single machine to cleaning all the materials. At least it will cause waste of user's funds, and more importantly, it will affect the effect of cleaning.

3. According to the clarity original materials.
In the case of high impurity, more processing steps are required, such as double gravity table and double vibrating screen. On the other hand, can select simple structure.

4. Based on available funds.
The price of the single machine of our company's combination cleaner ranges from USD6,500 to USD13,000 and users can purchase the most cost-effective model according to the affordable funds.

5. Overall dimensions of the combination cleaner.
There are many models of combination selecting machines, and the dimensions of each model are different. Users need to consider the size of their own plant and the size of the warehouse door to select model of cleaner, to avoid buy the equipment that cannot be placed in the plant.
Overseas users, because they need container transportation, also need to consider this issue, and cannot choose equipment blindly, which results to dismantle more parts or cannot be transported.

6. Choose a good manufactory.
There are many manufacturers of combination cleaners in China and with uneven quality. Therefore, we advised to consult with friends who have used the combination cleaner before purchasing, or visit various manufacturers. Whether in the product quality control or after-sales maintenance of equipment, large manufacturers have more advantages.

Seed combination cleaner is the mainstream in seed and grain processing industry in China. We will continue to improve existing products and develop new products, and contribute to the development of agriculture.
