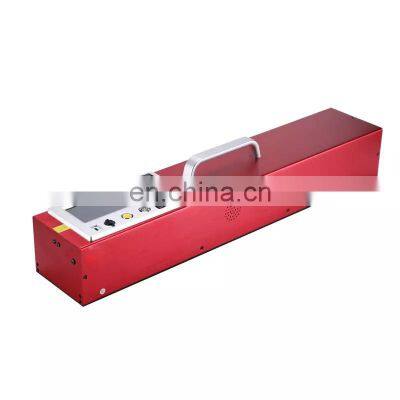

High quality Road marking reflecting measuring instrument retroreflectometer for saleProduct DescriptionThe instrument is designed and developed with reference to relevant international technical documents and current national standards and norms in China. It meets the requirements of No. 72 published by the International Lighting Commission (CIE), ASTMD4061-94, DIN67520, 67521 of Germany, GB/T 26377-2010 Reverse Reflectometer of China, GB/T 16311-2009 Quality Requirements and Monitoring Methods of Road Traffic Markings, JJG 059-2004 Verification Regulations of Reverse Reflectometer.ParametersObservation angle of the instrument1.05 degreesIncident angle is beta88.76 degreesComplementary angle1.24 degreesLight Source Color Temperature2856K+50K (CIEA Light Source)Detectorsilicon diode + V (lambda) rectifier, meets therequirements of CIE standardspectrophotometric observer spectral optical efficiency V (lambda)The measurement range of L retroreflectiveCoefficient R'is 0-3000 MCD lx-1 m-2Battery Continuous Working Time72 HoursData Storage10,000 Test InformationScreen4.5 "854x480Computer ConnectionTF Storage CardCharging220VAC 50HZ; DC8.4VPower supplylithium (6600 mah)Protection LevelIP54Working temperature- 15 C ~ + 50 COperating humidit10-90%, no condensationVolume (length x width x height)450mm x 132 mm x 132 mmNet weight5kgMain Features1. Open optical path design, support measurement under dry, humid and continuous rainfall conditions;2. Quick measurement (reverse reflection brightness coefficient value measured within 1.5 seconds);3. Simple calibration procedure; calibration system in line with international standards4. Long standby time, and supports fast charging;5. 5 inches sunlight screen, the operation interface can be seen clearly under the light;6. Support to store more than 100,000 pieces of detection data, including measurement data, operator, road information, GPSinformation and detection time, etc.7. USB data interface, test report is exported to computer in the form of database8. Real-time voice broadcast of measurement data;9. Bluetooth printer prints out the test results on site;10. Touch the keyboard to input Chinese characters, English and characters;11. Real-time sampling and real-time display of on-site temperature and humidity;12. The appearance is exquisite, small and light.ApplicationContact USCangzhou Lovely Group Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?get our in-time reply via email or telephone or instant messenger;get best product with excellent quality and competitive price;One year guarantee for whole machine 24 hours technical support by email or calling teach you to install and operate,always enjoy our considerable & full-side after-sales service; feel very convenient since we can help you sourcing and ship products from different factories via one shipment, which to a large extent save your time and cost; easily make the payment via West Union, Paypal, T/T for small value order;
>>
